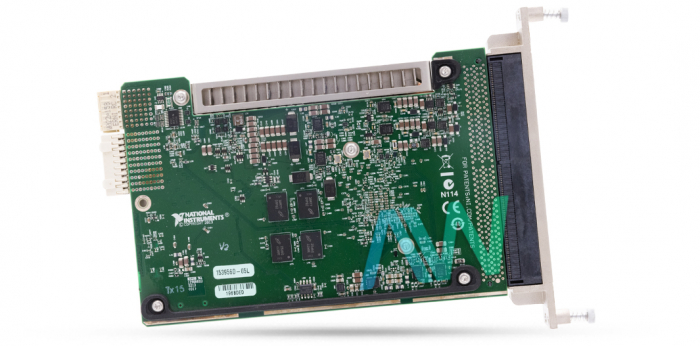

National Instruments PXIe-7975R PXI FPGA Module for FlexRIO

Featured with 68 general-purpose I/O and multiple DMA channels, the PXIe-7975R (Part Number: 782955-01) is a PXI Express-based FPGA Module for FlexRIO. This module belongs to the NI R Series and is also known as the PXIe-7975. The National Instruments PXIe-7975R PXI FPGA Module for FlexRIO is powered by a Kintex-7 FPGA (XC7K410T). There are 1540 DSP slices in the module and 63550 FPGA slices. The NI PXIe-7975R supports single-ended configuration rates up to 400 Mb/s. The 2 GB onboard DRAM of this module enables it to operate at a maximum data rate of 10.5 GB/s.

The reconfigurable FPGA of the PXIe-7975R has 32 DMA (Direct Memory Access) channels and supports multiple modes of data transfer, programmed I/O, interrupts, and DMA. The general-purpose I/O of the NI PXIe-7975R are grouped into three banks. Bank 0 and Bank 1 have 48 channels, whereas Bank 2 has 40 channels. This module is designed in the x4 PXIe form factor and is compliant with specification v2.1. The National Instruments PXIe-7975R PXI FPGA Module for FlexRIO is compatible with x4, x8, and x16 PXIe, or hybrid PXI slots. The PXIe-7975R weighs 6.7 oz and has dimensions of 7.4 x 5.1 in. without the connectors. This PXI FPGA Module for FlexRIO consumes 3 A current at +3.3 VDC and +12 V.
