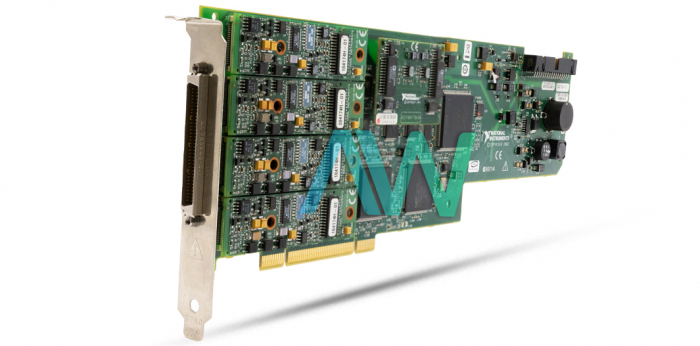

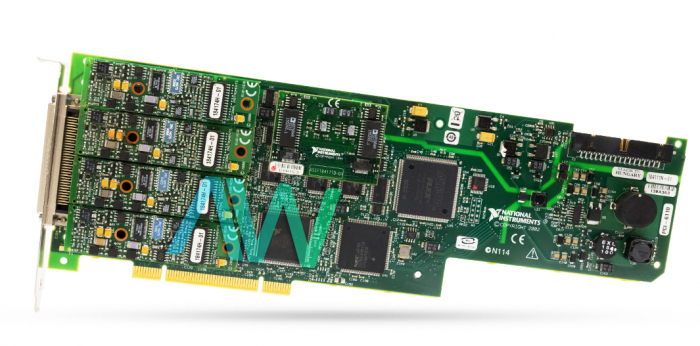

National Instruments PCI-6110 Multifunction I/O Device

The PCI-6110 (Part number: 777475-01) is a Multifunction I/O Device from National Instruments. This device offers the latest features to fulfill many measurement requirements. The PCI 6110 NI does not have any switches or jumpers. This device can perform basic measurement and analysis tasks. The PCI 6110 features both analog and digital channels. This device supports digital triggering. These features make this model ideal for stimulus/response applications.

The NI PCI-6110 has four differential analog input channels. The input channels are bipolar. This device has the input range of 20 V from -10 V to +10 V, a 12-bit resolution, and a sampling rate of 5 MS/s. The input channels support both AC and DC coupling. The NI DAQ PCI 6110 offers an analog input accuracy of 252 mV. The PCI-6110 also has two analog output channels, and is equipped with a 68-pin male SCSI II type I/O connector. These channels are incorporated in the I/O connector. The output channels have a 16-bit resolution and a sampling rate of 4 MS per second. In addition to analog channels, this device features eight digital channels (with a 5 V/TTL compatibility). These channels can be programmed as input or output channels. The PCI-6110 Multifunction I/O Device supports parallel sampling. This device can read samples from different channels simultaneously. The PCI-6110 device supports NI-DAQ driver software, which enables the device to create customized automated measurements and control applications. The PCI-6110 also has a FIFO buffer, which can store 8192 samples. The device has a power requirement of +5 VDC at 2.5 A.

The PCI-6110 Multifunction I/O Device is well suited for a broad range of applications, such as radar, sonar, and ultrasound technologies. This model is also ideal for industrial applications. These applications include lab automation and design verification. This device can additionally be utilized in research projects and the automation of 42 V.

The NI device measures 12.3 x 4.2 in. in physical dimensions. It has a recommended operating temperature range of 0 to 45 °C, a storage temperature range of –20 to 70 °C, and a noncondensing humidity range of 5 to 90% RH.

Apex Waves will continue to Buy, Sell, and Repair EOL NI Hardware in perpetuity. While the PCI-6110 entered the NI Maintenance phase on March 31, 2022, it will remain available with Apex Waves. Request your quote today!

The PCI-6110 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the PCI-6110 calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the PCI-6110 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped. Call or email us today for more information about calibrating the PCI-6110!
