National Instruments SCXI-2400 Serial Interface Module
The NI SCXI-2400 module has the capability to control any SCXI chassis via the RS-232 port or the RS-485 port on the user’s computer. The RS-232 port is used for direct connection to the serial port of a computer, while the RS-485 port is used for long distance, multichassis system configuration. To operate the SCXI 2400 module, the user needs an SCXI Chassis (SCXI-1000, SCXI-1000DC, or SCXI-1001), either an RS-232 Type 5 null modem cable or an RS-485 4-wire cable and ferrite, a computer with an RS-232 or RS-485 port, and software (LabVIEW for Windows, LabWindows/CVI for Windows, or NI-DAQ for PC compatibles). An optional accessory that can be used with the NI SCXI-2400 is the SCXI-1200 DAQ module.
The baud rate on this module is configurable. The user must choose the baud rate for the SCXI-2400 Serial Interface Module. If the user has several chassis cabled to one RS-485 network, then they must configure every chassis on the same network for an identical baud rate. The user can specify the baud rate by using switches 9 through 12 on the front panel of the module. The HDLC address can also be configured by the user. However, the HDLC address can remain at the factory-default of 1 if the user is not using numerous chassis. The RS-232 port cannot be utilized to control more than one chassis from one serial port; only the RS-485 serial port can control more than one chassis from a single serial port.
SCXI-2400 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.
| Model | SCXI-2400 |
|---|---|
| Manufacturer | National Instruments |
| Type | Serial Interface Module |
| Connectors | RS-232, RS-485, Parallel Port |
| Isolation | RS-485 Port: 42 V |
| Supported Baud Rates | 300, 600, 1200, 2400, 4800, and 9600 bps, 19.2 kbps, 38.4 kbps, 57.6 kbps |
| Byte Format | 1 start bit, 1 stop bit, no parity, 8 data bits |
| Dimensions | 1.2 by 6.8 by 8.0 in. |
| Warranty | 2-3 Year Warranty |
| SCXI-2400 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments SCXI-2400 Frequently Asked Questions
Question: What cables do you need to set up the SCXI-2400?
Answer: In order to set up the SCXI-2400, you will need either a RS-232 (Type 5) null modem cable or RS-485 (4-wire) cable and ferrite.
Question: What optional equipment is compatible with the NI SCXI-2400?
Answer: The NI SCXI-2400 can be used with the IEEE 1284 7-inch C-to-type-A parallel port cable, DAQ device, or SCXI DAQ module.
Question: What do I need to do to use the RS-485 port to control the chassis on the SCXI 2400?
Answer: To control your chassis via the RS-485 serial port on the SCXI 2400, you must specify the HDLC address of the SCXI-2400 on the serial port. You must configure all the serial ports on the same network for different addresses. Before setting the HDLC address of the SCXI-2400, set the address of your chassis to 0.
SCXI-2400

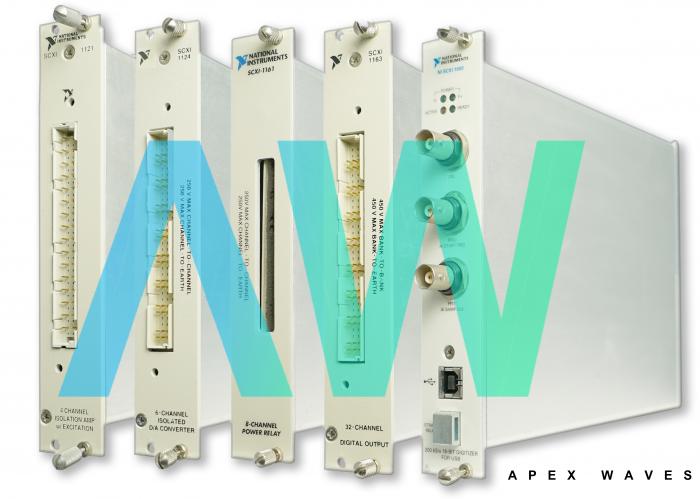

Main Image

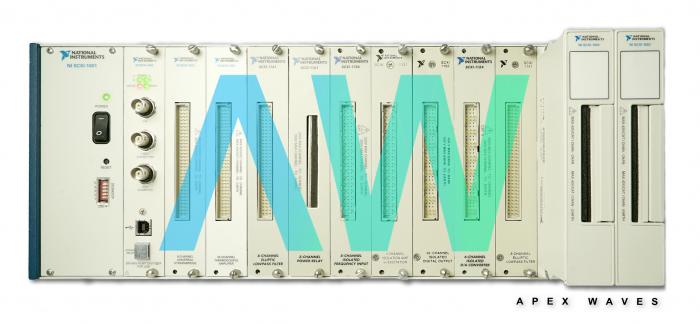

Secondary Image
