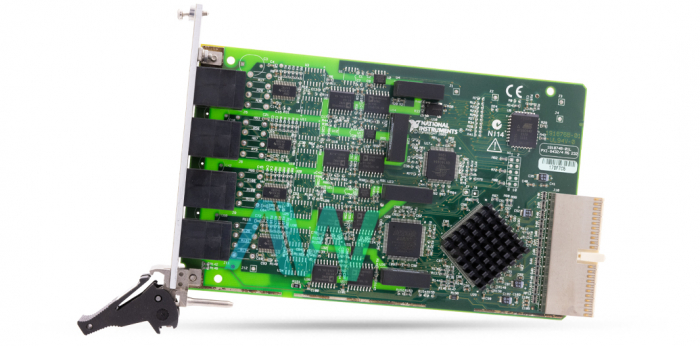

National Instruments PXI-8432/4 PXI Serial Interface Module

The PXI-8432/4 (Part Number: 779538-01) 4 Port, Isolated RS-232, Serial Interface Module allows the user to introduce and utilize the USB-232 and USB-485 as standard serial ports from the user’s current applications or with applications composed with NI-VISA. In addition, the 2-port and 4-port adaptations of the USB-232 incorporate programming selectable DTE or DCE handset modes and a programmed handset identification mode, also known as Auto232. The USB-485 has a predisposition selectable by programming, with which the user can activate and deactivate the deviation for each port.

The NI PXI-8432/4 comes with Ethernet interfaces. National Instruments ENET-232 and ENET-485 serial gadget servers interface Ethernet 100BaseTX (100 Mb/s) or 10BaseT (10 Mb/s) Ethernet systems to non-concurrent serial ports for communication with serial gadgets. They accompany 2 or 4 port alternatives and utilize standard interchanges RS-232, RS-422, or RS-485. All items are delivered with the driver programming for Windows 2000/NT/XP.

The TCP/IP communication protocol, which handles all interchanges between the serial gadget server and the host PC, is executed in the firmware incorporated with the server of the serial gadget. A design utility arranges the IP address of the serial gadget server and uncovers all extra serial ports to the working framework used by any application programming bundle utilizing a standard Microsoft Windows serial interface (COM).
