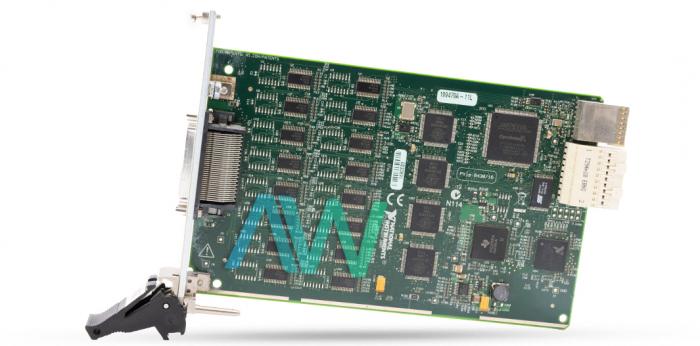

National Instruments PXIe-8430/16 PXI Serial Interface Module

The National Instruments PXIe-8430/16 (Part Number: 781472-02) Serial Interface Module has 16 ports and is a superior association for fast communication with RS-232 devices. This module offers support for superior DMA exchanges, different strings, and numerous processors. NI serial associations also appear as standard COM ports, for similarity with programs that use serial communications.

The NI PXIe-8430/16 Serial Interface Module includes elite DMA exchanges, multithreading, and a multiprocessor bolster. Not like conventional interference-based serial interfaces, users can utilize different serial associations to communicate with many ports at high rates easily and in a solitary framework, with minimal CPU utilization. With this model comes the NI-VISA API, which is a function used in NI LabView for serial programming in different languages and maintains the code compact among all VISA-suitable associations.

All NI serial equipment bolsters standard baud rates. In addition, the PXIe-8430/16 Serial Interface Module bolsters any baud rate from 2 bauds up to the most extreme upheld baud rate for that interface. All baud rates are upheld as long as the UART can get inside 1.3 percent of all baud rates in that range. The PXIe-8430/16 offers adaptable baud rates for information transmissions between 57 bauds and 1,000,000 bauds to inside 1 percent precision for nonstandard baud rates and 0.01 percent exactness for standard baud rates.

This module offers flexible standard and nonstandard baud rates from 2 baud to 1,000,000 baud, more than 0.015 percent precision for standard baud rates and 0.5 percent for nonstandard rates, and 128B transmit and FIFOs limit CPU overhead. The NI PXIe-8430/16 includes two 8-port breakout links (68-stick VHDCI to eight D-Sub 9-stick male ports). The NI-Serial driver incorporates free NI-VISA API for a simple programming Design System.
