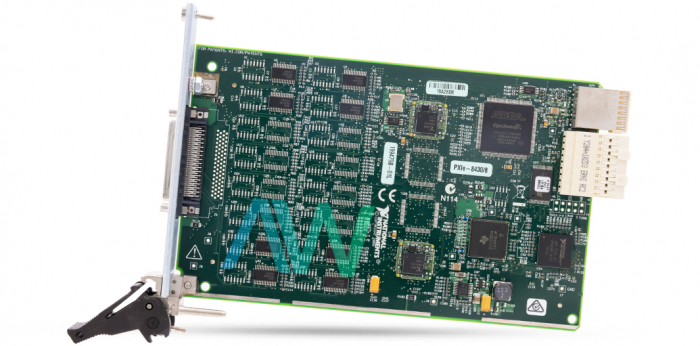

National Instruments PXIe-8430/8 Serial Interface Module

The NI PXIe-8430/8 (Part Number: 781472-01) is a Serial Interface Module that includes 8 Ports. Each of the 8-port serial association incorporates a connector link that associates with the SCSI 68-stick connector that belongs to the gadget and ends in eight basic DB-9 male connectors. These DB-9 male connectors give basic stick assignments to RS232 associations. With multiprocessor and hyper-threading similarity, the user can exploit the most recent PC innovation for higher speeds and enhanced productivity. The new driver programming included with the NI PXIe-8430/8 Serial Interface Module offers better asset portion, along with DMA access for higher throughput with insignificant CPU use. Also, the PXIe-8430/8 module incorporates new memory-mapping highlights that can be used to interface with more serial gadgets without asset clashes.

The TCP/IP communication convention, which handles all communication between the serial gadget server and the host PC, keeps running on implanted firmware in the serial gadget server. A design utility arranges the IP address of the serial gadget server and uncovers all extra serial ports to the OS for quick use by any application programming bundle utilizing a standard Microsoft Windows Serial (COM) port interface.

The user can additionally install and utilize the USB-232 and USB-48 as basic serial ports from current applications or with applications composed with NI-VISA. Also, the USB-232 2 and 4-port forms include software eligible DTE or DCE handset modes, and a programmed handset discovery mode, or Auto232. The USB-485 highlights programming eligible biasing, with which users can turn biasing on and off for each port. The PXIe-8430/8 has a power requirement of 220 mA typical and 250 mA maximum at +12 VDC, 200 mA typical and 750 mA maximum at +3.3 VDC.

The NI device weighs 143 g, and measures 3.94 x 6.37 in. in physical dimensions. It has recommended operating and storage temperature ranges of 0 to 55 °C and -40 to 71 °C respectively, non-condensing operating and storage humidity ranges of 10 to 90% RH and 5 to 95% RH respectively, operating and non-operating random vibrations of 0.3 grms and 2.4 grms respectively–all at a frequency range of 5 to 500 Hz.
