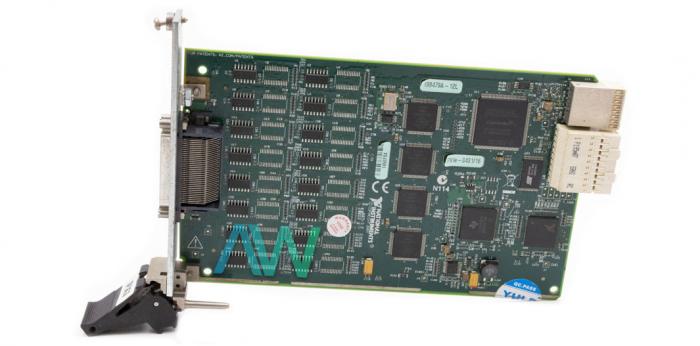

National Instruments PXIe-8431/16 PXI Serial Interface Module

The PXIe-8431/16 (Part Number: 781473-02) is a Serial Interface Module with an RS485/RS422 interface that comes with 16 Ports. The user can choose either 4 and 2-wire handset modes for medium and full duplex communication. The NI PXIe-8431/16 additionally appears as a basic COM port, for similarity with programs that use serial communications. The National Instruments ENET-232 and ENET-485 serial gadget servers associate either 100BaseTX (100 Mb/s) or 10BaseT (10 Mb/s) Ethernet systems to offbeat serial ports for correspondence.

Stop bit is an included function on the PXIe-8431/16, which enables a module or PC to process synchronization if there should arise a failure. For instance, noise on line can hid begin bit. Span amongst beginning and stop bits is consistent and relies upon speed, number of information bits inside the message, and equality bit presence. If the receiver recognizes off state when stop bit ought to be available, the mistake is distinguished.

The NI PXIe-8431/16 comes with a basic RS-485 interface that permits just 32 transmitter/beneficiary sets. The providers have extended the chances of RS-485, so now it can bolster from 128 to 255 gadgets on one line, and by utilizing the number of gadgets for all intents and purposes have no confinements. In RS-485, it is conceivable. In the event of long wires, it is important to utilize eliminators, which are inserted to the gadget with RS485 convention (although if there should arise an event of short wires it is conceivable that the signal will be debilitated by utilizing eliminators). The RS-485 standard likewise permits the utilization of a protected twisted pair link. It is conceivable to utilize a 4-wire twisted match.
