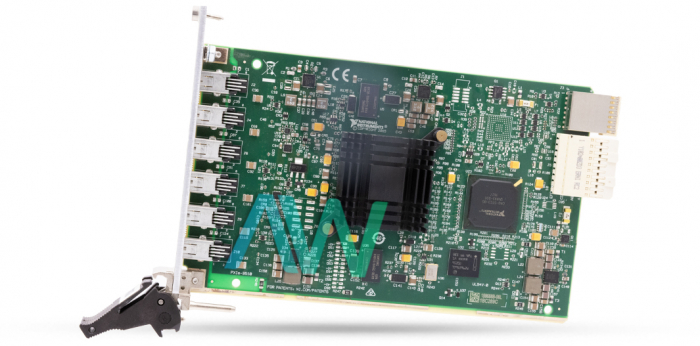

National Instruments PXIe-8510 PXI Vehicle Multiprotocol Interface Module

The PXIe-8510 (Part Numbers: 784121-01 and 784122-01) is a Portable Multiprotocol Interface Module that comes with 2 or 6 Ports and is an equipment selectable controller zone organization interface, as well as a local interconnect device for creating applications with an NI Controller.

XNET is a function incorporated in the NI PXIe-8510, which exceeds expectations in applications that require fast ongoing control of several casings and CAN signals, such as hardware-in-the-loop simulation, quick generation of control models, bus checking, mechanization control, and many others. The DMA motor controlled by the NI-XNET gadget empowers the inside processor to move outlines and CAN motions between the interface and the client program without intruding on the CPU, which limits message dormancy and arranges for the season of the fundamental processor for process complex models and applications. The NI-XNET driver can be used to program and design NI-XNET links. With the capacity to meet the developing benchmarks for higher information rates, CAN FD is the generation of rapid CAN communication. NI has empowered speed to 8 Mb/s utilizing the TJA1043 handset through the NI-XNET driver. As the handset suppliers meet the CAN FD speed criteria, NI will refresh its documentation, as essential.

The NI PXIe 8510 offers a CAN HS/FD and/or LIN interface with equipment selectable NI-XNET handset links, a NI-XNET driver for creating casing and signal applications in LabVIEW, LabWindows ™/CVI, and C/C ++, along with a driven DMA motor for coupling to host memory to limit message latency.
