National Instruments TPC-2230 Touch Panel Computer

The National Instruments TPC-2230 (Part Numbers: 784250-01, 784251-01, and 784252-01) is a Touch Panel Computer. The only difference between the three versions of this Touch Panel Computer is the size. Part number 784250-01 is 6 in. Part number 784251-01 is 12 in. Lastly, part number 784252-01 is 15 in. This Human Machine Interface (HMI) is based on an x86 platform. The NI TPC-2230 has an Intel Atom dual core processor, which is normally utilized to install human machine interface applications in rough environments. The end user can combine the TPC-2230 Touch Panel Computer additionally has a wide operating temperature range from -20 to 60 °C.

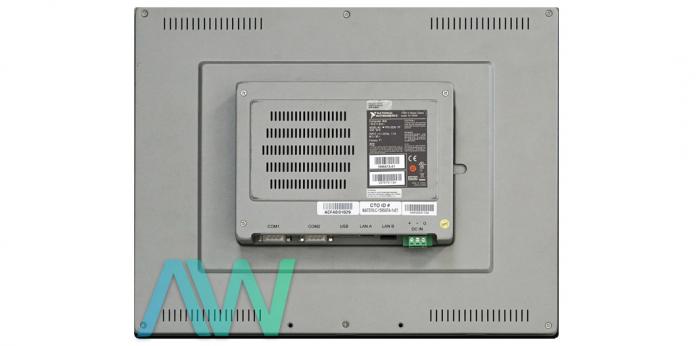

The NI TPC-2230 has compatibility with complex interfaces with durability. This Touch Panel Computer is fanless. Since it has a low power processor, it does not require a cooling fan. The National Instruments TPC-2230 is great for I/O interfacing while communicating with other devices. These interfaces include Gigabit Ethernet, USB 2.0 and USB 3.0 ports, and two serial ports (RS232 and RS232/422/485). The TPC-2230 contains a power connector port as well. This Touch Panel Computer has Windows Embedded Standard 7 (WES7) support.

While setting up the TPC-2230 Touch Panel Computer, the user should first check the required items carefully. The required items include: the TPC-2230, six 6.5 inch screws, eight 12.1 inch and 15 inch clamps, six 6.5 inch clamps, eight 12.1 inch and 15 inch screws, a power connector with 3 pins, one cable for grounding (earth cable), and a human machine interface universal serial bus. The touchscreen should also be calibrated prior to use.
