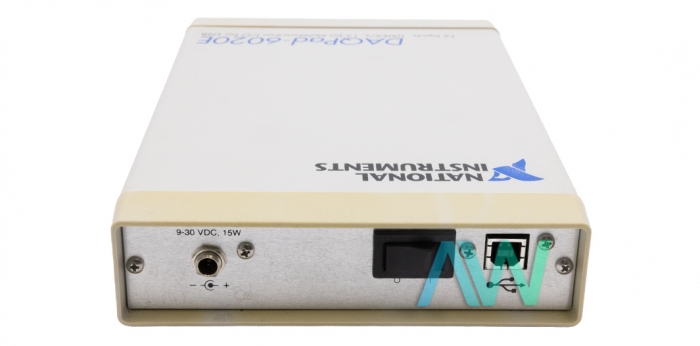

National Instruments DAQPad-6020E Multifunction DAQ

The DAQPad-6020E (Part Numbers: 777474-01, 777474-04, 777474-06, 777474-07, 777704-01, 777704-04, 777704-06, 777704-07, 777703-01, 777703-04, 777703-06, and 777703-07) is a legacy Multifunction DAQ by National Instruments. This device has multiple part numbers because it has different variations with mass termination or BNC connectors. These versions are a 30 cm enclosure, but there is also a version which is a 15 cm enclosure. Several power options are also available for each variation.

The DAQPad-6020E belongs to the portable E Series family. The DAQPad-6020E can be used with the NI-DAQ 7 driver. The DAQPad-6020E is utilized with LabVIEW, LabWindows, VI-Logger, and Measurement Studio software for multiple types of applications. The NI DAQPad-6020E is compatible with other software packages like Visual Basic, C++, and C#. The DAQPad-6020E can be installed on Windows NT/2000/XP, along with Linux and Mac OS X operating systems

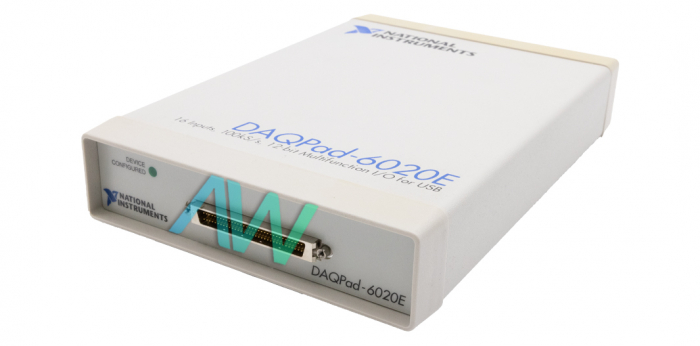

This Multifunction DAQ is designed for universal serial buses (USB) data acquisition devices. The DAQPad-6020E can function as a hot-swappable device. The NI DAQPad-6020E also has a 68-pin male 0.050 D-type I/O connector.

The DAQPad-6020E is built with 8 differential analog input channels that contain 12-bit input resolution. This Multifunction DAQ has a maximum sampling rate of 100 kS/s. The DAQPad-6020E is developed with an input voltage range from ±0.05 to ±10 V.

This DAQ is equipped with 2 analog output channels with 12-bit output resolution. The NI DAQPad-6020E can provide an output rate of 20 S/s. The DAQPad-6020E can only perform digital triggering. This Multifunction DAQ is manufactured with 8 digital I/O lines of TTL standard and has a bandwidth of 150 kHz.
