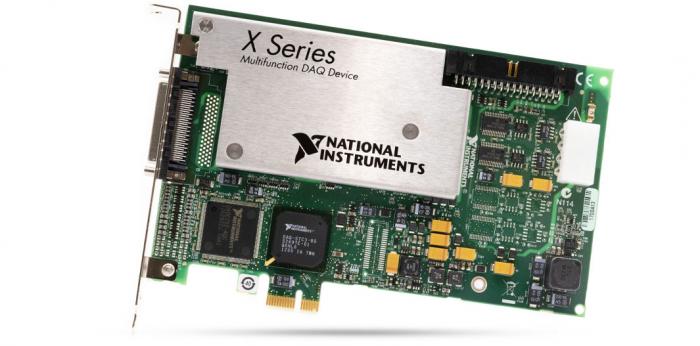

National Instruments PCIe-6351 Multifunction I/O Device

The PCIe-6351 (Part number: 781048-01) is an X Series Multifunction I/O Device manufactured by National Instruments. The device meets EMC standards, which are essential for electrical equipment used in the lab. These standards are also essential for control and measurement purposes. National Instruments is dedicated to planning and developing reliable products. The NI PCIe-6351 is manufactured in the same way.

The National Instruments PCIe-6351 is featured with a PCI Express Interface, which is compatible with 1 to 16 PCI Express slots. It enables the device to deliver up to 16 digital input and 8 digital output lines through the DMA channels. The NI device has 16 differential or 8 single-ended analog input channels (with a 16-bit resolution and a maximum sample rate of 1.25 MS per second), and 2 analog output channels–equally with a 16-bit resolution and a maximum sample rate of 2.86 MS per second. The NI PCIe-6351 also has external digital triggers which are workable through any PFI or RSTI. These triggers have software-selectable polarity for many signals. The external digital triggers have analog inputs and outputs. These inputs and outputs enable the device to direct and break the triggers. It can also be used as a sample clock timebase and a sample clock. The NI PCIe-6351 can generate the trigger with another device bus interface. It uses RSTI as the input and output medium. The device also has on phase locked loop, and is equipped with a 68-pin VHDCI I/O connector.

The PCIe-6351 is operated using the NI-DAQmx 9.0 driver software which is compatible with an application development environment like LabVIEW or other software choices.

The National Instruments PCIe-6351 has four 32‑bit counters/timers for event counting and PWM, which operate at a frequency of 100 MHz. These are also included for frequency, encoder, and much more. Additionally, it has 1 frequency generator channel. This device provides excellent performance through driver and application software. It is also structured with NI-STC3 technology. The NI PCIe-6351 is perfectly applicable in test automation and control applications. This device is also suitable for general data logging application. It weighs 0.35 lbs., and measures 3.9 x 6.6 in. in physical dimensions.

The NI PCIe-6351 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the NI PCIe-6351 calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the NI PCIe-6351 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped. Call or email us today for more information about calibrating the NI PCIe-6351!
