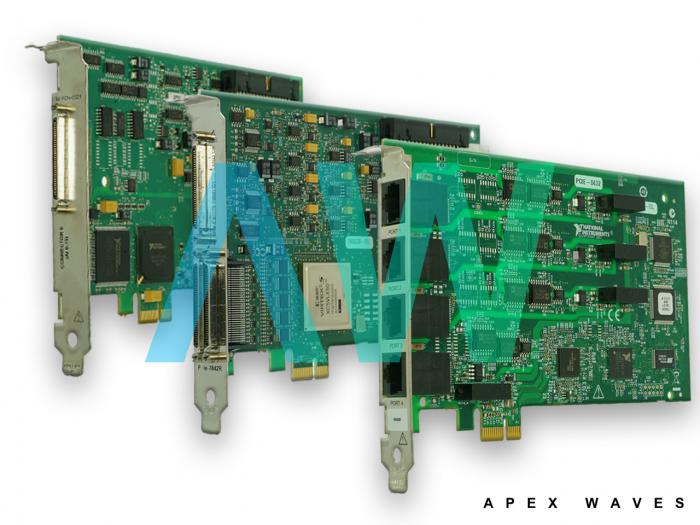

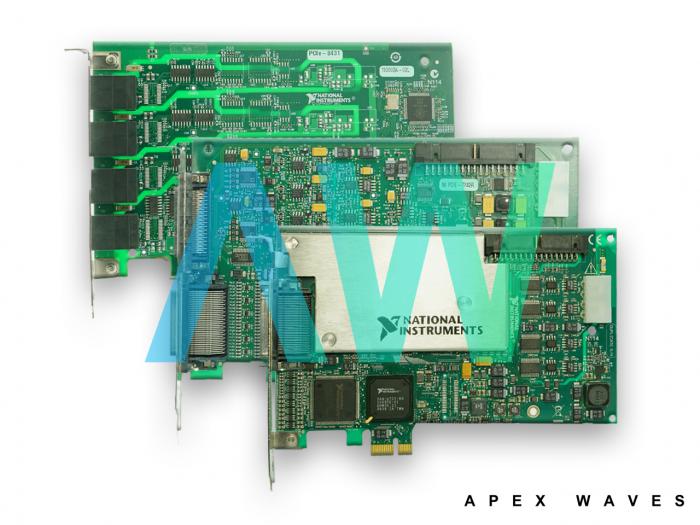

National Instruments PCIe-6374 Multifunction I/O Device

The PCIe-6374 (Part number: 785817-01) is a high-performance Multifunction I/O Device from National Instruments. This device incorporates a PCI Express Bus Connector. The NI PCIe-6374 offers the flexibility to sample the data simultaneously across all channels. This model has a sampling rate of 3.57 MS per second. This value of sampling rate is based per channel. The device comes with four analog input channels. These channels are differential. The NI PCIe-6374 Multifunction I/O Device additionally has two analog output channels.

The NI PCIe-6374 device comes with a built-in ADC, which has a resolution of sixteen bits. The normal warm-up time of the device is fifteen minutes. The recommended calibration interval for the PCIe 6374 device is a time span of two years. The module is a small device and has a minimal weight. The physical dimensions are 6.60 inches x 4.38 inches.  The NI PCIe 6374 Multifunction I/O Device weighs around 110 grams.

The NI PCIe-6374 Multifunction I/O Device includes four counters. These counters have a 32 bit resolution. The counters enable the user to implement the mechanism for triggering requirements. This device includes both analog and digital triggering capabilities. The NI PCIe-6374 Multifunction I/O Device also comes with the DAQ Express software. This software enables the users to complete various measurements and analysis procedures with ease. The instrument can be used for a wide range of applications at the industrial level, which includes manufacturing and testing requirements for different types of telecom equipment.
