National Instruments PXIe-6355 PXI Multifunction I/O Module

The PXIe-6355 (Part Number: 783632-01) is a 16-bit Multifunction I/O Module from NI. The PXIe-6355 offers analog I/O, digital I/O, and counter/timers in a single PXI module. The NI PXIe-6355 is equipped with a NI-DAQmx driver and MAX configuration utility. These features enable the user to perform simple configuration and measurements. The module delivers advanced timing functionality, independent timing engines, and triggerable measurement tasks.  The PXIe-6355 Multifunction I/O Module is well suited for many applications, broadly ranging from basic data logging to control and test automation. These modules have various industrial applications. The NI PXIe-6355 is used in laboratory research, design verification test, and manufacturing test.

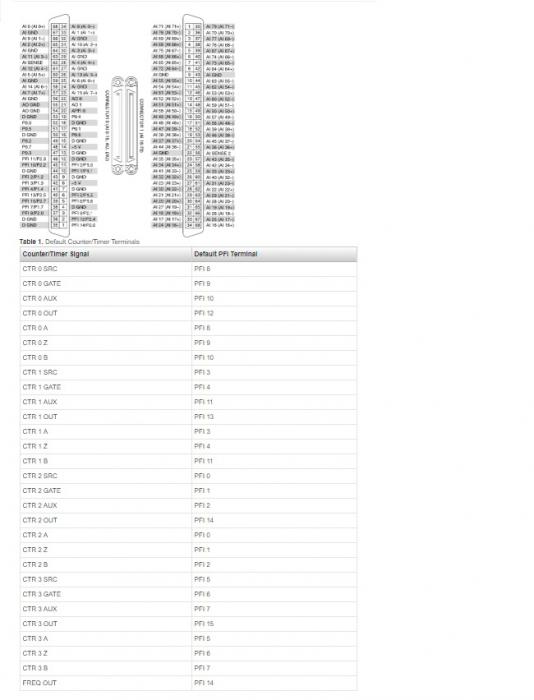

The National Instruments PXIe-6355 I/O Module has 80 analog inputs, 2 analog outputs, 24 digital I/O lines, four counters, and two female VHDCI connectors. The VHDCI connectors have 68 pins each. The analog inputs have 16-bit resolution, 1.25 MS/s single-channel sampling rate, and an input range from ±10 V to ±0.1V. The analog outputs have 16-bit resolution and 2.86 MS/s single-channel sampling rate. The counters have 32-bit resolution and 10 MHz frequency. The X Series PXIe-6355 Multifunction I/O Module also offers multi-channel sampling. The counters are used for PWM, encoder, frequency, event counting, and triggering functionality.

The PXIe-6355 module has NI-STC3 timing and synchronization technology and offers advanced timing and triggering. The module has a high-throughput PCI Express bus, a multicore-optimized driver, and application software. The PCI Express Bus offers a dedicated bandwidth up to 250 MB/s maximum. The driver and software are supported for Windows 10/8/7/Vista/XP. The latest software prevents crashes and maximizes hardware and system performance.
