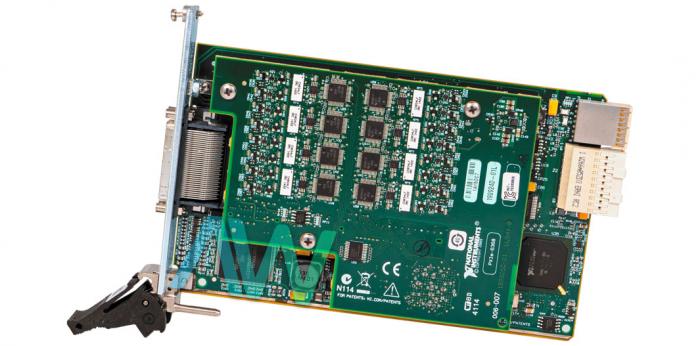

National Instruments PXIe-6368 Multifunction I/O Module

The PXIe‑6368 (Part Number:781058-01) is a simultaneous sampling, Multifunction I/O Module presented by National Instruments. This module can perform multi-function data acquisition. The NI PXIe-6368 has 16 differential Analog Input Channels with 16 Bit resolution. Each channel can perform at the maximum sample rate of 2 MS per second. The device has an input voltage range of ±1 V up to ±10 V. The PXIe-6368 has an analog input absolute accuracy up to 2688 µV. The Analog Input FIFO Buffer Size is up to 8182 samples.

The NI PXIe-6368 has four Analog Output channels, which can perform at 3.3 MS per second for each channel. Each channel has a 16 Bit resolution, a timing resolution of 10 ns, and a timing accuracy of 50 ppm (of sample rate). It has an Analog Output voltage range of up to 10V. It is embedded with an advanced timing and synchronization technology, as well as an application software and a multi-core optimized driver. This module provides a new level of performance with the high-throughput PCI Express bus. The National Instruments PXIe-6368 Multifunction I/O Module has 48 digital I/O lines. Each terminal can independently programmable as input or output. The module has a pull-down resistor with 50 kΩ typical and 20 kΩ minimum.  The module provides input voltage protection up to ±20 V on up to two pins, and weighs 8.5 oz.

The device is fitted with 4 general-purpose counters, with a resolution of 32 bits. Additionally, it has a frequency generator with 3 base clocks: 20 MHz, 10 MHz, and 100 kHz–all have an accuracy of 50 ppm. The PXI-6368 has a power requirement of 8.2 W at 3.3 V, and 21.8 W at 12 V. It is equipped with 2 68-pin VHDCI I/O connectors.

The NI PXI-6368 Multifunction I/O Module has analog signal paths, which are accurately designed, tested, and calibrated. These paths ensure the highest possible accuracy is achieved from all input channels. NI delivers meticulously documented accuracy specifications to thorough design-and-test ideas. It allows a comprehensive consideration of device performance under possible operating conditions. The PXIe‑6368 module also has several accessories available for purchase separately.

The PXIe‑6368 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the PXIe‑6368 calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the PXIe‑6368 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped. Call or email us today for more information about calibrating the PXIe‑6368!
