National Instruments PXIe-6375 Multifunction Module

The PXIe-6375 (Part Number: 783634-01) Multifunction I/O Module has 208 AI (16 Bit resolution, 3.8 MS/s sample rate), 2 AO, and 24 DIO. This module offers analog I/O, digital I/O, and four 32-bit counters/clocks for PWM, encoder, frequency, occasion count, and so on. The NI PXIe-6375 gives superior usefulness, utilizing the elite PCI Express bus, and multi-center upgraded application and driver programming. The integrated NI-STC3 timing and synchronization innovation offers advanced timing usefulness that incorporates independent analog and digital timing engines and reactivable estimation assignments. The PXIe-6375 is perfect for a wide assortment of utilizations, from basic data logging to test automation and control. The NI-DAQmx driver and the included configuration utility simplify configuration and estimation.

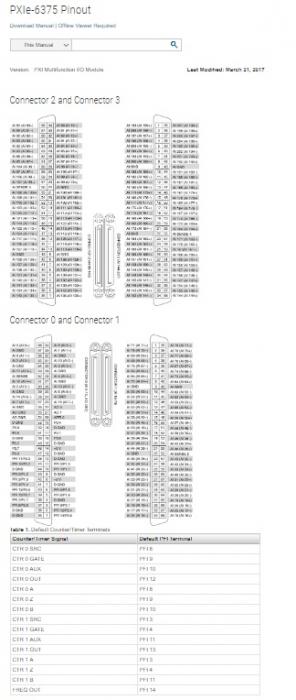

The NI PXIe-6375 has an Analog Input Ground. These terminals are the reference point for single-ended AI estimations in RSE mode and the bias current return point for DIFF estimations. All ground references, AI GND, AO GND, and D GND, are associated on the gadget. Although AI GND, AO GND, and D GND are associated on the gadget, they are associated by little traces to diminish crosstalk between subsystems. Each ground has a slight contrast in potential.

Programmable Function Interface or Digital I/O Channels can be exclusively arranged as a PFI terminal or a digital I/O terminal. As an input, each PFI terminal can be utilized to supply an external source for AI, AO, DI, and DO timing signals or counter/clock inputs. As for the PFI output, the user can route a wide range of inside AI, AO, DI, or DO timing signals to each PFI terminal. The user can also direct the counter/clock outputs to each PFI terminal. As a port 1 or port 2 digital I/O signal, the user can design each signal as an information or signal.
