USB-6363 Technical Specifications:
| Manufacturer | National Instruments |
|---|---|
| Model | USB-6363 |
| Part Numbers | 782259-01, 781443-01, 782258-01 |
| Type | Multifunction I/O Device |
| Repair Evaluation | $150 |
USB-6363
Home USB-6363
| Part Number | USB-6363 |
| Manufacturer/Brand | National Instruments |
| Description | NI USB-6363, 32 Analog Input, 4 Analog Output, 48 Digital I/O, USB Multifunction I/O Device |
Speak to a sales representative for pricing & lead time:
Phone:1-919-809-5227
• Quick Quotes: Receive Price & Availability Today!
• Warranty: 1 Year Warranty Covered by Apex Waves
• Calibration: Ask About Our Tiered Calibration Levels
• Option & Modules: Confirm Your Requirements or Versions
• Repair: Cost & Lead Time Available Upon Request for Service
- Description
- Technical Specifications
- FAQ

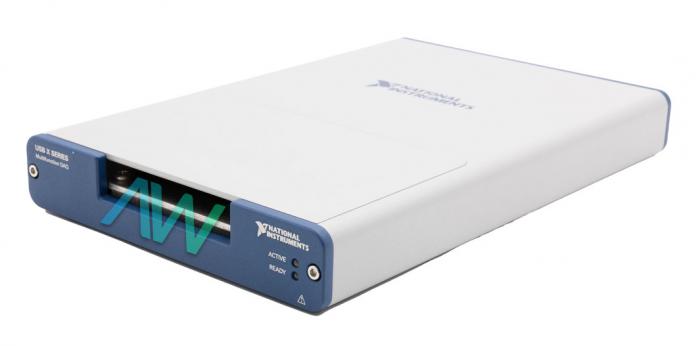

National Instruments USB-6363 Multifunction I/O Device
The USB-6363 (Part Numbers: 782257-01, 782258-01, 782259-01, 781443-01) is a Multifunction I/O Device for the X Series manufactured by National Instruments. This device has 32 single ended analog input channels that can be easily configured as 16 differential channels, offering a max sample rate of 2.00 MS/s. The 4 analog output channels of the device boast 64 bits of DAC resolution, while the 48 Digital I/O/PFI channels allow each individual terminal to be programmed as either input or output.
There are 4 variations of the USB-6363 I/O device, differentiated by their connector types. Part number 782258-01 has BNC connectors, while part number 782259-01 has mass termination connector types and part number 781443-01 is equipped with screw terminal connector types. The final part number, 782257-01, represents the board only kit of the device. These different versions of the NI USB-6363 feature different I/O connectors, providing users with versatile connectivity options.
The BNC connector version of the I/O device includes 30 BNCs in addition to 60 screw terminals with a screw terminal wiring gauge of 16 AWG to 24 AWG. The mass termination version of the USB-6363 is designed with 2 68-Position VHDCI I/O connectors, boasting an additional 68-Position Offset IDC cable connector. Lastly, the screw terminal variation of the device 128 screw terminals with a wiring gauge of 16 AWG to 24 AWG.
Designed to meet the specifications set by various environmental standards, the NI USB-6363 has a maximum working voltage of 11 V for channel-to-earth. Featuring a quick 15 minute warm up time, it is recommended to calibrate the device every two years to ensure accuracy.
Physical, the BNC version of the NI USB-6363 I/O device weighs 1.803 kg (3 lb 15 oz) and measures 20.3 cm × 18.5 cm × 6.8 cm (8.0 in. × 7.3 in. × 2.7 in.). The mass termination version weighs in at 971 g (2 lb 2.2 oz), measuring dimensions of 18.5 cm × 17.3 cm × 3.6 cm (7.3 in. × 6.8 in. × 1.4 in.). Finally, the screw terminal variation of the USB-6363 weighs in at 1.459 kg (3 lb 3.4 oz) and has dimensions of 26.4 cm × 17.3 cm × 3.6 cm (10.4 in. × 6.8 in. × 1.4 in.).
| Model | USB-6363 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 782259-01, 781443-01, 782258-01, 782257-01 |
| Type | Multifunction I/O Device |
| Analog Input Channels | 32 single-ended or 16 differential |
| Analog Output Channels | 4 |
| Maximum Sample Rate | 2 MS/s |
| Dimensions | BNC: 8.0 in. × 7.3 in. × 2.7 in.; Mass Termination: 7.3 in. × 6.8 in. × 1.4 in.; Screw Terminal: 10.4 in. × 6.8 in. × 1.4 in. |
| Weight | BNC: 3 lb 15 oz.; Mass Termination: 2 lb 2.2 oz.; Screw Terminal: 3 lb 3.4 oz. |
| Warranty | Three Year Warranty |
| USB-6363 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments USB-6363 Frequently Asked Questions
Question: What is the difference between the part numbers for the NI USB-6363?
Answer: There are three types of front connectors available for the NI USB-6363: part number 782259-01 with VHDCI front connectors, part number 781443-01 with screw terminal front connectors, and part number 782258-01 with BNC front connectors. Part number 782257-01 is for the board only kit of the USB-6363.

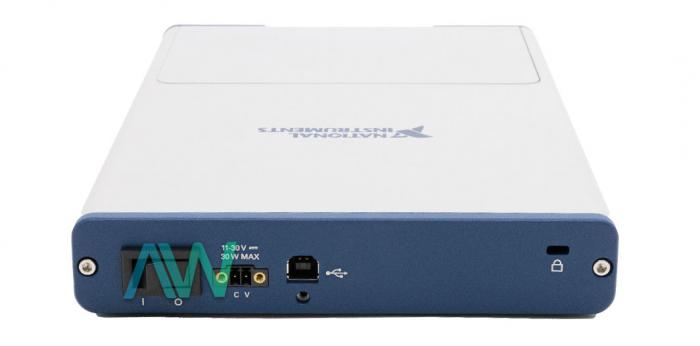

Question: What does the pin labeling of “C” and “V” on the back of the USB X Series 6363 mean?
Answer: The “C” pin labeling on the back of the USB X Series 6363 stands for Common = Ground = Negative Terminal. The “V” is the positive terminal.
Question: Does the National Instruments NI USB-6363 need an external power supply?
Answer: Yes, the National Instruments NI USB-6363 needs an external power supply.
Question: What type of electrical signal does the NI USB-6363 X Series DAQ measure?
Answer: The NI USB-6363 X Series DAQ measures voltage electrical signals.
