USB-6366 Technical Specifications:
| Manufacturer | National Instruments |
|---|---|
| Model | USB-6366 |
| Part Numbers | 781445-01, 782264-01, 781445-02, 782263-01 |
| Type | Multifunction I/O Device |
| Repair Evaluation | $150 |
USB-6366
Home USB-6366
| Part Number | USB-6366 |
| Manufacturer/Brand | National Instruments |
| Description | NI USB-6366, X Series, 8 Analog Input, 2 Analog Output, 24 Digital I/O, USB Multifunction I/O Device |
Speak to a sales representative for pricing & lead time:
Phone:1-919-809-5227
• Quick Quotes: Receive Price & Availability Today!
• Warranty: 1 Year Warranty Covered by Apex Waves
• Calibration: Ask About Our Tiered Calibration Levels
• Option & Modules: Confirm Your Requirements or Versions
• Repair: Cost & Lead Time Available Upon Request for Service
- Description
- Technical Specifications
- FAQ
National Instruments USB-6366 Multifunction I/O Device
The USB-6366 (Part Numbers: 781445-01, 781445-02, 782262-01, 782263-01, 782264-01) is a versatile Multifunction I/O device from the National Instruments X Series. Equipped with 8 differential analog input channels, 2 analog output channels, and 24 bidirectional digital I/O lines, the NI USB-6366 offers excellent performance for a wide range of test and measurement applications. Compact yet powerful, the device has a maximum working voltage of ±11 V for all inputs.
There are multiple variations of the NI USB-6366, offering a range of connector types and different memory sizes. Part number 782263-01 is the version of the I/O device with BNC connectors, while part number 782264-01 features mass termination connection capabilities. Part numbers 781445-01 and 781445-02 are both equipped with screw terminal connector types, but they have 32 MS and 64 MS of memory respectively. The final part number, 782262-01, refers to the board only kit version of the USB-6366.

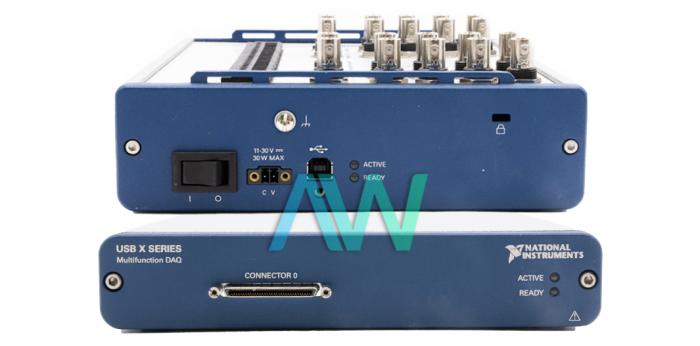

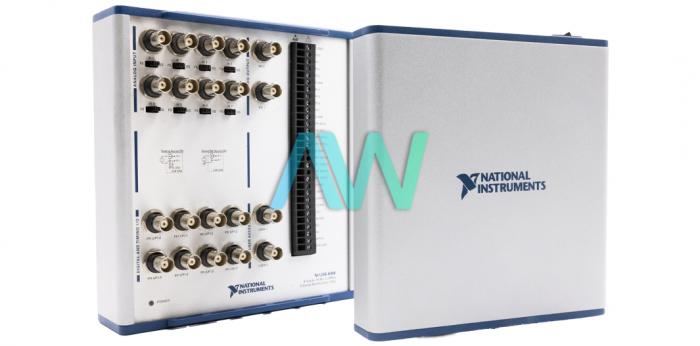

A wide range of I/O connectors are available with the NI USB-6366 I/O Device. The variation of the USB-6366 with a USB mass termination connection type is equipped with a singular 68-Pin VHDCI connector, while a USB screw terminal connection has 64 screw terminals. A USB-6366 with a BNC connection features 20 BNCs and 30 screw terminal I/O connectors. The screw terminal wiring for the device is 16-24 AWG. To maintain accuracy and reliability, it is recommended to calibrate the NI USB-6366 every two years.
Designed as a standard 3U PXI, the dimensions of the NI USB-6366 differ depending on the connector type that is included. With mass termination connectors, the I/O device measures 18.5 × 17.3 × 3.6 cm (7.3 × 6.8 × 1.4 in.) and weighs 967 g (2 lb 2.1 oz). With screw terminal connectors included, it weighs 1.428 kg (3 lb 2.3 oz) and measures 26.4 × 17.3 × 3.6 cm (10.4 × 6.8 × 1.4 in.), while the dimensions of the USB-6366 with BNC connectors is 20.3 × 18.5 × 6.8 cm (8.0 × 7.3 × 2.7 in.) with a weight of 1.536 kg (3 lb 6.2 oz).
| Model | USB-6366 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 781445-01, 782264-01, 781445-02, 782263-01, 782262-01 |
| Type | Multifunction I/O Device |
| Analog Input Channels | 8 differential |
| Analog Output Channels | 2 |
| Maximum Sample Rate | 2 MS/s per channel |
| Dimensions | Mass Termination: 7.3 × 6.8 × 1.4 in.; Screw Terminal: 10.4 × 6.8 × 1.4 in.; BNC: 8.0 × 7.3 × 2.7 in. |
| Weight | Mass Termination: 2 lb 2.1 oz.; Screw Terminal: 3 lb 2.3 oz; BNC: 3 lb 6.2 oz. |
| Warranty | Three Year Warranty |
| USB-6366 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments USB-6366 Frequently Asked Questions
Question: What are the differences between the part numbers for the NI USB-6366?
Answer: The NI USB-6366 has three front connector types available, as well as two analog input FIFO buffer sizes. First, part number 781445-01 has screw terminal front connectors and 32 MS analog input FIFO buffer size. Part number 782264-01 has VHDCI front connectors and 64 MS analog input FIFO buffer size. Next, part number 781445-02 has screw terminal front connectors and 64 MS analog input FIFO buffer size. Lastly, part number 782263-01 has BNC front connectors and 64 MS analog input FIFO buffer size. Part number 782262-01 refers to the board only kit version of the USB-6366.
Question: What is the maximum update rate for the DAQ USB-6366?
Answer: The maximum update rate for the DAQ USB-6366 is 3.33 MS/s per channel.
Question: Is it possible to sample multiple channels on the USB 6366 NI with different sample rates?
Answer: No, the USB 6366 NI does not allow for channels to have different sample rates because they all share one sample clock.
Question: Which position measurements can the counters/timers on the NI USB-6366 X Series DAQ perform?
Answer: The counters/timers on the NI USB-6366 X Series DAQ can perform the following position measurements: two-edge separation, semi-period, edge counting, pulse width, period, and pulse.
