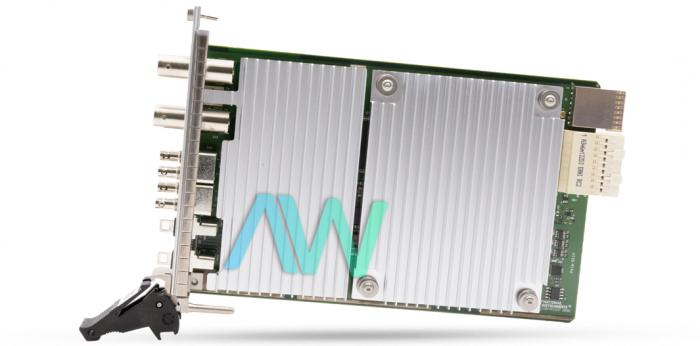

National Instruments PXIe-5110 PXI Oscilloscope

The PXIe-5110 (Part Numbers: 785767-01, 785767-11, 785768-01, and 785768-11) is a PXI Oscilloscope. The PXIe-5110 is developed by National Instruments. There are several differences between the four part numbers of the NI PXIe-5110. The PXIe-5110 is available with 64 MB or 512 MB onboard memory sizes. In addition, there is CableSense technology available on two of the versions of this oscilloscope. The NI PXIe-5110 can be accessed with the NI-SCOPE driver software for the installation of multiple programs. The PXIe-5110 can be installed with various types of application software like LabWindows/CVI, Measurement Studio, MS-Visual C/C++, LabVIEW, and .NET.

The National Instruments PXIe-5110 PXI Oscilloscope is designed for the PXIe bus connector. The PXIe-5110 utilizes a maximum bandwidth of 100 MHz. The NI PXIe-5110 is operated with a sampling rate up to 1 GS/s. The PXIe-5110 is built with 2 channels for voltage inputs. The NI PXIe-5110 has an analog input resolution of 8 bits. The PXIe-5110 PXI Oscilloscope can be accessed with an analog input impedance of 50 Ohm or 1 MOhm. The NI PXIe-5110 functions with an analog input voltage range from -20 V to 20 V.

The NI PXIe-5110 PXI Oscilloscope is fabricated with both AC and DC input coupling. The PXIe-5110 is manufactured with multiple triggering modes. The PXIe-5110 is suitable for automated as well as partially automated test applications. The NI PXIe-5110 can be utilized for high-level synchronization of PXI modules. The PXIe-5110 is also capable of data throughput. There is not an FPGA on this PXI Oscilloscope.
