TDS3012B-NV Technical Specifications:
| Manufacturer | Tektronix |
|---|---|
| Model Number | TDS3012B-NV |
| Product Type | Digital Phosphor Oscilloscope |
TDS3012B-NV
Home TDS3012B-NV
| Part Number | TDS3012B-NV |
| Manufacturer/Brand | Tektronix Inc |
| Description | Digital Phosphor Oscilloscope with 100 MHz bandwidth |
Speak to a sales representative for pricing & lead time:
Phone:1-919-809-5227
• Quick Quotes: Receive Price & Availability Today!
• Warranty: 1 Year Warranty Covered by Apex Waves
• Calibration: Ask About Our Tiered Calibration Levels
• Option & Modules: Confirm Your Requirements or Versions
• Repair: Cost & Lead Time Available Upon Request for Service
- Description
- Technical Specifications
- Product FAQ
Tektronix TDS3012B-NV Digital Phosphor Oscilloscope
The Tektronix TDS3012B-NV Digital Phosphor Oscilloscope is a graph-displaying gadget that draws graphs of electrical signals. In many applications, the graph indicates how signals change after some time: the vertical axis (Y) its related to voltage and the horizontal axis (X) is related to time. The power or shine of the display is sometimes called the Z pivot.
The Tektronix TDS3012B-NV oscilloscope's straightforward graph can explain numerous things about a signal. For example, the frequency of a wavering signal, the "moving parts" of a circuit related to a signal, the recurrence with which a specific segment of the signal is happening in respect to different portions, whether or not a breaking down segment is misshaping the signal, the amount of a signal that is direct current (DC) or alternating current (AC), the amount of the signal that is noise, and whether noise is changing with time.
The TDS3012B-NV packs the energy of computerized phosphor oscilloscope innovation, WaveAlert™ programmed irregularity recognition, OpenChoice™ documentation and investigation arrangements with e*Scope® electronic remote control, and five application-particular modules into a lightweight, battery-proficient design. DPO innovation conveys unrivaled knowledge into complex signals with the capacity to show, store, and dissect three measurements of signal data continuously: time, amplitude, and distribution of amplitude after some time.
This model has a 100 MHz Bandwidth, 9-Bit Vertical Resolution, Full VGA Color LCD, and Programmed Waveform Measurements.
You can find more information about this model by reading its manual, which is available on the ApexWaves.com website.
| TDS3012B | Technical Specifications & Electrical Characteristics |
|---|---|
| Bandwidth | 100 MHz |
| Channels | 2 Channels |
| Sample Rates | 1.25GS/s |
| Display | Full VGA Color LCD |
| Vertical Resolution | 9-Bit |
| WaveAlert | Automatic Anomaly Detection |
| OpenChoice | Solutions Simplify Instrument Control, Documentation and Analysis Solutions |
| e*Scope | Web-based Remote Control |
| Automatic Measurements | 25 |
| Ethernet Port | Built-in |
| Other Ports | GPIB, RS232, VGA |
| Software | WaveStar |
| FFT | Fast Fourier Transform |
| TMT | Telecommunications Mask Testing |
Q: Where can I find the TDS3012B-NV oscilloscope manual?
A: You can find the TDS3012B-NV oscilloscope manual on the Apex Waves TDS3012B-NV product page or by visiting Tektronix website:
Q: What is the TDS3012B-NV price TDS3012B-NV ä¾¡æ ¼ ?
A: Apex Waves offers different prices per condition: New, New Surplus and Reconditioned units. Some factors affect pricing such as availability, current, obsolete and mature as well as condition. Please email a request for price and availability and we will get you a quotation including price & availability within 24 hours, guaranteed. Regardless of price, all units are guaranteed to work on arrival, backed by our one year warranty which is included in the Tektronix TDS3012B-NV price and quotation. We stock the TDS3012B-NV second hand ä¸å¤ with international shipping available.
Q: Is there such thing as a USB port upgrade option for the TDS3012B-NV TDS3000 oscilloscope or the TDS3000B series oscilloscope?
A: Currently, there is no upgrade option for the TDS 3012B TDS 3000B oscilloscope model that will substitute floppy drives with a USB port.
Q: When I turn my TDS3012B-NV oscilloscope TDS3000/3000B on the unit is not recognizing my floppy disk drive, containing the TDS3012B-NV firmware update files. How can I resolve this?
A: When the TDS3012B-NV firmware update disks are created, be sure the firmware files are located at the top level of the directory and not in a subfolder. I.e. A:fwdisk1.dat not A:subfolderfwdisk1.dat
To update your firmware on your TDS3012B-NV Tektronix oscilloscope, you need to ensure your firmware files are located on the top level of your directory. Additionally, avoid placing the firmware file in any subfolders.
Q: What does it cost to repair the TDS3012B-NV ?
A: TDS3012B-NV repair pricing will be determined after evaluation. Our repair process is very simple. We will issue an RMA for repair so that you can send the unit (including the RMA) to our facility where we can provide an evaluation for repair. This process can take 2-4 weeks to complete but can be expedited.
TDS3012B-NV

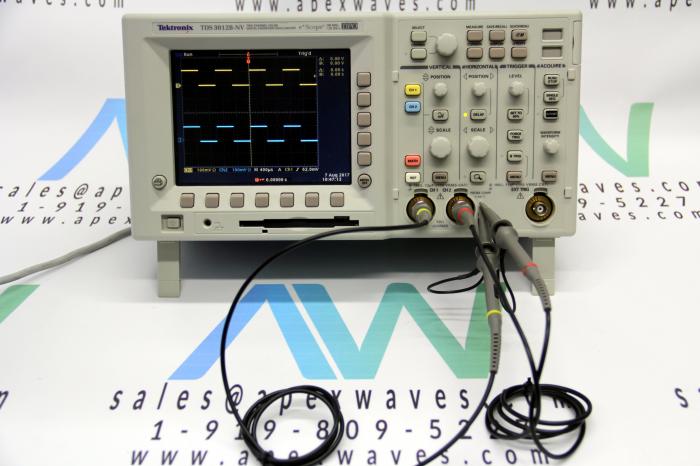

Main Image

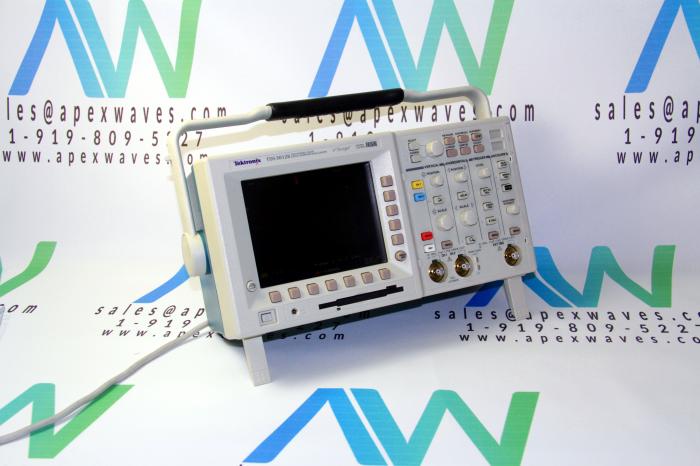

Secondary Image
