TDS3014B Technical Specifications:
| Manufacturer | Tektronix |
|---|---|
| Model Number | TDS3014B |
| Product Type | Digital Phosphor Oscilloscope |
TDS3014B
Home TDS3014B
| Part Number | TDS3014B |
| Manufacturer/Brand | Tektronix Inc |
| Description | Digital Phosphor Oscilloscope with 100 MHz bandwidth |
Speak to a sales representative for pricing & lead time:
Phone:1-919-809-5227
• Quick Quotes: Receive Price & Availability Today!
• Warranty: 1 Year Warranty Covered by Apex Waves
• Calibration: Ask About Our Tiered Calibration Levels
• Option & Modules: Confirm Your Requirements or Versions
• Repair: Cost & Lead Time Available Upon Request for Service
- Description
- Technical Specifications
- Modules & Options
- Troubleshooting Tips

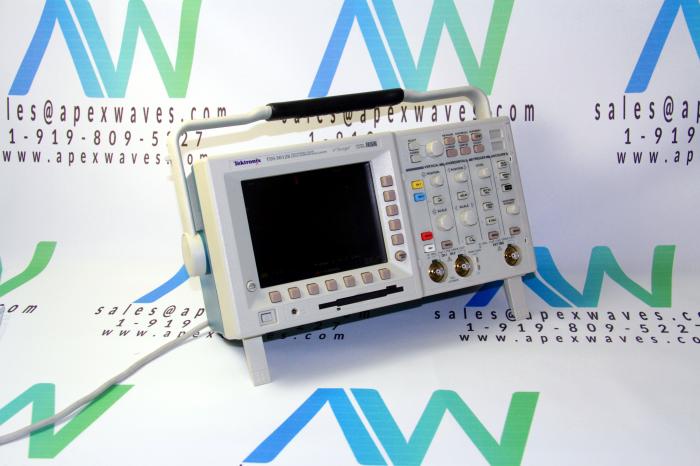

Tektronix TDS3014B Digital Phosphor Oscilloscope
The Tektronix Digital Phosphor Oscilloscope TDS3014B is capable of storing and analyzing three measurements of signal data continuously: amplitude, time and distribution of amplitude.
The TDS3014B has WaveAlert, a Waveform Anomaly Detection which is useful on problem-solving tasks by helping the user discover subtle issues quicker. WaveAlert screens the incoming signals on all channels and will identify any waveform that veers off from the ordinary waveform that is acquired. Since the oscilloscope TDS3014B can stop acquisition, emit a beeping noise, make a printout, or save the waveform when it distinguishes a peculiarity, it can run tests on long periods of time, even unattended, to discover those very uncommon testing failures.
This model also includes an e*Scope Web-based Remote Control. e*Scope allows the user to control their TDS3014B oscilloscope from anyplace, utilizing the Internet or a PC. The TDS3014B oscilloscope can be linked to LAN by means of the Ethernet port. Simply open a program window on your PC and enter the TDS3014B oscilloscope's IP address in the Address window. The oscilloscope will react, enabling you to control it from your program. Download e*Scope control programming to your PC for a graphical interface that shows the TDS3014B oscilloscope screen and front board controls for simple access.
This model has a data transfer capacity of 100 MHz, a Test Rate on each channel of 1.25 GS/s, 20 MHz of BW Limit, and 4 ns to 10 s/div of Time Base Range.
The manual for this model is available on the ApexWaves.com website.
| TDS3014B | Technical Specifications & Electrical Characteristics |
|---|---|
| Bandwidth | 100 MHz |
| Channels | 4 Channels |
| Sample Rates | 1.25GS/s |
| Maximum Record Length | 10K Points |
| Vertical Resolution | 9-Bit |
| Vertical Sensitivity | 1 mV – 10 V on all models |
| Vertical Accuracy | ±2% on all models |
| Max input voltage (1 MΩ) | 150 VRMS CAT I on all models (300 V CAT II with standard 10X probe) |
| Position Range | ± 5 div on all models |
| BW Limit | 20 MHz |
| Input Coupling | AC, DC, GND |
| Input Impedance Selections | 1 MΩ in parallel with 13 pF or 50 Ω |
| Time Base Range | 4 ns – 10 s/div |
| Display (VGA) | Color Active Matrix LCD |
TDS3014B Tektronix Digital Phosphor Oscilloscope
Application Modules & Options:
- TDS3FFT FFT application package - The FFT application package adds FFT analysis and measurement capability to your TDS3014B oscilloscope. Application packages can be installed by the user. Further information can be found in the service manual TDS3000B TDS3014B programmer manual.
- TDS3TRG Advanced Triggering application package - The advanced triggering application package adds pulse-width, slew-rate, pattern, state, runt, and edge-delay triggering capability to your TDS3014B oscilloscope. Application packages can be installed by the user. Reference the user manual for the TDS3014B.
- TDS3GM GPIB/RS-232 communication module - This communication module adds GPIB and RS-232 ports to your TDS3014B oscilloscope. You can attach a printer to these ports or use them for remote programmability. Communication modules can be installed by the user and include the TDS3000-Series oscilloscope Programmer Manual for the TDS3014B for further reference.
- TDS3AAM Advanced Analysis Module - Adds extended math capability, arbitrary math expressions, measurement statistics and additional automated measurements. TDS3014B Tektronix oscilloscope modules.
- TDS3LIM Limit Testing Module - Offers fast, accurate Go/No Go verification that tested circuits are operating within intended parameters. For use with the TDS3014B.
- TDS3TMT Telecommunications Mask Testing Module - Pass/Fail compliance of ITU-T G.703 and ANSI T1.102 standards, custom mask testing and more. This module is compatible with TDS3014B Tektronix scope.
- TDS3VID Extended Video Editing Module - Adds Video QuickMenu, autoset, holdoff, line count trigger, video picture mode, vectorscope mode*1, HDTV format triggering graticules and more. Refer to the TDS3014B user manual for more information on options and modules.
- TDS3SDI 601 Serial/Digital Video Module - Identify and analyze ITU-R BT.601 video signals, video picture mode with bright line select, vectorscope mode*1, HDTV format triggering and more. TDS3014B Tektronix Oscilloscope.
- TDS3VM VGA/RS-232 communication module - This communication module adds VGA and RS-232 ports to your TDS3014B oscilloscope. You can attach a printer to the RS-232 port or use it for remote programmability. You can attach a monitor to the VGA port to enhance viewing the screen from a distance. Communication modules can be installed by the user and include the TDS3014B TDS3000-Series oscilloscope Programmer Manual.
- TDS3EM Ethernet communication module - This communication module adds Ethernet 10baseT and RS-232 ports to your TDS3014B oscilloscope. You can attach the oscilloscope to an Ethernet network for remote printing. Communication modules can be installed by the user and include the TDS3000-Series Programmer Manual TDS3014B.
- TDS3CHG external battery charger - The battery charger recharges the oscilloscope battery pack in approximately 3 hours. For use in the TDS3014B digital phosphor oscilloscope.
- TDS3BAT rechargeable battery pack - An extra rechargeable battery pack provides a high-capacity spare battery for extended portable operation.For use in the TDS3014B digital phosphor oscilloscope.
How-to Troubleshoot the TDS3014B Tektronix TDS3000B Oscilloscope
General Troubleshooting Tips
- Verify that your factory defaults were in fact recalled before configuring your scope or taking any measurements.
- Double check the circuit configuration. An incorrect connection or missing wire could alter your results.
Function Check procedure for Tektronix Oscilloscope
- Connect your oscilloscope power cable
- Power on your oscilloscope. Confirm that self tests have passed.
- Connect your oscilloscope probe to channel 1. Connect the probe tip & reference lead to PROBE COMP connectors.
- Press the AUTOSET button. You should see a square wave in the display (approx. 5V at 1kHz).
Troubleshoot: RS-232 Communications Port
- Verify the correct cable and adapters are in use
- Verify that cables are connected to the correct ports
- Reset the RS-232 parameters to Defaults, then set the Baud Rate to match the computer or hard copy device.
- Enable the debug window to view the RS-232 status, data transmitted, data transceived, and errors.
Troubleshoot: No signals onscreen (after scaling & offsetting)
- Double check for loose wiring or connections from the probe alligator clips / grabber clips.
- Verify your black leads from the probes are grounded.
- If earth ground is present, verify black leads of the probes and earth ground are at the same potential.
Troubleshoot: Unexpected signal onscreen
- Double check the timescale, a small piece of a larger waveform might be displayed.
- Double check that probe clips are connected to the correct circuit node.
If your problem persists
- Recall factory defaults once more and try again
- Contact Tech Support for further assistance
