TDS3044B Technical Specifications:
| Manufacturer | Tektronix |
|---|---|
| Model Number | TDS3044B |
| Product Type | Digital Phosphor Oscilloscope |
TDS3044B
Home TDS3044B
| Part Number | TDS3044B |
| Manufacturer/Brand | Tektronix Inc |
| Description | Digital Phosphor Oscilloscope with 5 GS/s sample rate |
Speak to a sales representative for pricing & lead time:
Phone:1-919-809-5227
• Quick Quotes: Receive Price & Availability Today!
• Warranty: 1 Year Warranty Covered by Apex Waves
• Calibration: Ask About Our Tiered Calibration Levels
• Option & Modules: Confirm Your Requirements or Versions
• Repair: Cost & Lead Time Available Upon Request for Service
- Description
- Technical Specifications
- Modules & Options
- Troubleshooting Tips

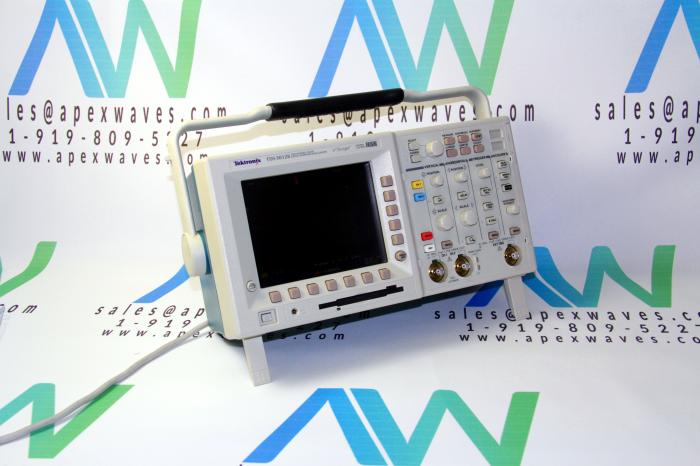

Tektronix TDS3044B Digital Phosphor Oscilloscope
The TDS3044B oscilloscopes developed by Tektronix come standard with NTSC, PAL, and SECAM (all fields or all lines) triggering capacities. The TDS3VID application module expands this essential video triggering by including the accompanying highlights: a Video QuickMenu function that enables you to show a base and side menu that contains video capacities valuable for showing and measuring broadcast standard waveforms, including trigger source, when to trigger, and video Autoset. The Autoset function consequently changes the vertical, horizontal, and video trigger settings to show a video waveform triggered on all lines and fields. Then, the user can physically alter controls to upgrade the display. This capacity is accessible in the Video QuickMenu and in the Acquire menu.
The TDS3044B Digital Phosphor Oscilloscope also includes a custom video function that enables the user to determine custom horizontal scan rates with a specific end goal to trigger on non-broadcast video waveforms, such as those utilized by PC screens and medical equipment. The TDS3044B offers simple HDTV Features; the TDS3VID and TDS3SDI modules enable the user to work with rising simple HDTV principles. Trigger on a scope of HDTV groups – 1080i, 1080p, 720p, and 480p. Additionally, it uses the vectorscope on simple HDTV with graticules for both 100 and 75% shading bars. It is important to see a solitary line of the video waveform. For instance, the programming data in the NTSC signal in some cases is found on Line 20. Line Count triggering enables the user to trigger on a specific line by looking through the line numbers and choosing the one they need.
The manual for this model is available on the ApexWaves.com website.
| TDS3044B | Technical Specifications & Electrical Characteristics |
|---|---|
| Bandwidth | 400 MHz |
| Channels | 4 |
| Sample rate on each channel | 5 GS/s |
| Maximum record length | 10 K points on all models |
| Vertical resolution | 9 Bits on all models |
| Vertical sensitivity | 1 mV – 10 V on all models |
| Vertical accuracy | ±2% on all models |
| Max input voltage (1 MΩ) | 150 VRMS CAT I on all models (300 V CAT II with standard 10X probe) |
| Position range | ± 5 div on all models |
| BW limit | 20, 150 MHz |
| Input coupling | AC, DC, GND on all models |
| Input impedance selections | 1 MΩ in parallel with 13 pF or 50 Ω on all models |
| Time base Range | 1 ns – 10 s/div |
| Time base Accuracy | 20 ppm on all models |
| Display (VGA) | Color active matrix LCD on all models |
Tektronix Digital Phosphor Oscilloscope
Application Modules & Options:
- TDS3FFT FFT application package - The FFT application package adds FFT analysis and measurement capability to your TDS3044B oscilloscope. Application packages can be installed by the user. Further information can be found in the service manual TDS3000B TDS3044B programmer manual.
- TDS3TRG Advanced Triggering application package - The advanced triggering application package adds pulse-width, slew-rate, pattern, state, runt, and edge-delay triggering capability to your TDS3044B oscilloscope. Application packages can be installed by the user. Reference the user manual for the TDS3044B.
- TDS3GM GPIB/RS-232 communication module - This communication module adds GPIB and RS-232 ports to your TDS3044B oscilloscope. You can attach a printer to these ports or use them for remote programmability. Communication modules can be installed by the user and include the TDS3000-Series oscilloscope Programmer Manual for the TDS3044B for further reference.
- TDS3AAM Advanced Analysis Module - Adds extended math capability, arbitrary math expressions, measurement statistics and additional automated measurements. TDS3044B Tektronix oscilloscope modules.
- TDS3LIM Limit Testing Module - Offers fast, accurate Go/No Go verification that tested circuits are operating within intended parameters. For use with the TDS3044B.
- TDS3TMT Telecommunications Mask Testing Module - Pass/Fail compliance of ITU-T G.703 and ANSI T1.102 standards, custom mask testing and more. This module is compatible with TDS3044B Tektronix scope.
- TDS3VID Extended Video Editing Module - Adds Video QuickMenu, autoset, holdoff, line count trigger, video picture mode, vectorscope mode*1, HDTV format triggering graticules and more. Refer to the TDS3044B user manual for more information on options and modules.
- TDS3SDI 601 Serial/Digital Video Module - Identify and analyze ITU-R BT.601 video signals, video picture mode with bright line select, vectorscope mode*1, HDTV format triggering and more. TDS3044B Tektronix Oscilloscope.
- TDS3VM VGA/RS-232 communication module - This communication module adds VGA and RS-232 ports to your TDS3044B oscilloscope. You can attach a printer to the RS-232 port or use it for remote programmability. You can attach a monitor to the VGA port to enhance viewing the screen from a distance. Communication modules can be installed by the user and include the TDS3044B TDS3000-Series oscilloscope Programmer Manual.
- TDS3EM Ethernet communication module - This communication module adds Ethernet 10baseT and RS-232 ports to your TDS3044B oscilloscope. You can attach the oscilloscope to an Ethernet network for remote printing. Communication modules can be installed by the user and include the TDS3000-Series Programmer Manual TDS3044B.
- TDS3CHG external battery charger - The battery charger recharges the oscilloscope battery pack in approximately 3 hours. For use in the TDS3044B digital phosphor oscilloscope.
- TDS3BAT rechargeable battery pack - An extra rechargeable battery pack provides a high-capacity spare battery for extended portable operation.For use in the TDS3044B digital phosphor oscilloscope.
How-to Troubleshoot the TDS304B Tektronix TDS3000B Oscilloscope
General Troubleshooting Tips
- Verify that your factory defaults were in fact recalled before configuring your scope or taking any measurements.
- Double check the circuit configuration. An incorrect connection or missing wire could alter your results.
Function Check procedure for Tektronix Oscilloscope
- Connect your oscilloscope power cable
- Power on your oscilloscope. Confirm that self tests have passed.
- Connect your oscilloscope probe to channel 1. Connect the probe tip & reference lead to PROBE COMP connectors.
- Press the AUTOSET button. You should see a square wave in the display (approx. 5V at 1kHz).
Troubleshoot: RS-232 Communications Port
- Verify the correct cable and adapters are in use
- Verify that cables are connected to the correct ports
- Reset the RS-232 parameters to Defaults, then set the Baud Rate to match the computer or hard copy device.
- Enable the debug window to view the RS-232 status, data transmitted, data transceived, and errors.
Troubleshoot: No signals onscreen (after scaling & offsetting)
- Double check for loose wiring or connections from the probe alligator clips / grabber clips.
- Verify your black leads from the probes are grounded.
- If earth ground is present, verify black leads of the probes and earth ground are at the same potential.
Troubleshoot: Unexpected signal onscreen
- Double check the timescale, a small piece of a larger waveform might be displayed.
- Double check that probe clips are connected to the correct circuit node.
If your problem persists
- Recall factory defaults once more and try again
- Contact Tech Support for further assistance
