TDS3064B Technical Specifications:
| Manufacturer | Tektronix |
|---|---|
| Model Number | TDS3064B |
| Product Type | Digital Phosphor Oscilloscope |
TDS3064B
Home TDS3064B
| Part Number | TDS3064B |
| Manufacturer/Brand | Tektronix Inc |
| Description | Digital Phosphor Oscilloscope with 5 GS/s sample rate |
Speak to a sales representative for pricing & lead time:
Phone:1-919-809-5227
• Quick Quotes: Receive Price & Availability Today!
• Warranty: 1 Year Warranty Covered by Apex Waves
• Calibration: Ask About Our Tiered Calibration Levels
• Option & Modules: Confirm Your Requirements or Versions
• Repair: Cost & Lead Time Available Upon Request for Service
- Description
- Technical Specifications
- Modules & Options
- Troubleshooting Tips

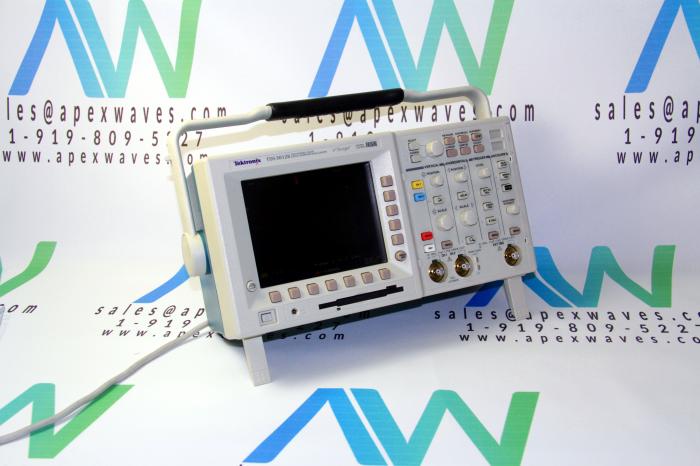

Tektronix TDS3064B Digital Phosphor Oscilloscope
The Tektronix TDS3064B is a Digital Phosphor Oscilloscope with a WIDTH (or GLITCH), that triggers on pulse width less than, more prominent than, equivalent to, or not equivalent to a selectable time limit extending from 39.6 ns to 50 s. The Runt triggers on a pulse that crosses one edge, but neglects to cross a second limit before crossing the first once more. In this model, the Slew Rate triggers on pulse edge rates that are either speedier or slower than a set rate. Edges can rise, fall, or both. The Tektronix TDS3064B provides detached pulse triggering, which is required to perform DS1/DS3 media communications mask testing per ANSI T1.102 standards. The TDS3GV Communications Module has features such as: GPIB (IEEE 488.2) programmability, full talk/listen modes, and control of all modes, settings and estimations. The VGA is a monitor output for coordinate display on expansive VGA-prepared screens. The DB-15 female connector has a 31.6 kHz sync rate and is EIA RS-343A compliant.
This model has a function called Deskew. The Channel-to-channel deskew ±10 ns might be physically entered for better timing estimations and more precise math waveforms. This oscilloscope has many arithmetic operators like add, subtract, multiply, divide, and arbitrary math expressions*2. The Autoset is a single-button, programmed setup on selected input signal for vertical, horizontal, and trigger frameworks.
In this model, the Comm (requires TDS3TMT) provides disengaged pulse triggering required to perform DS1/DS3 broadcast communications mask testing per ANSI T1.102 standards. This model also has an alternate function, which sequentially utilizes every dynamic channel as a trigger source.
This model has a 600 MHz bandwidth, BW Limit to of 20,150 MHz, Time Base Range of 1 ns to 10 s/div, and 5 GS/s Test Rate on Each Channel.
| TDS3064B | Technical Specifications & Electrical Characteristics |
|---|---|
| Bandwidth | 600 MHz |
| Channels | 4 |
| Sample rate on each channel | 5 GS/s |
| Maximum record length | 10 K points on all models |
| Vertical resolution | 9 Bits on all models |
| Vertical sensitivity | 1 mV – 10 V on all models |
| Vertical accuracy | ±2% on all models |
| Max input voltage (1 MΩ) | 150 VRMS CAT I on all models (300 V CAT II with standard 10X probe) |
| Position range | ± 5 div on all models |
| BW limit | 20, 150 MHz |
| Input coupling | AC, DC, GND on all models |
| Input impedance selections | 1 MΩ in parallel with 13 pF or 50 Ω on all models |
| Time base Range | 1 ns – 10 s/div |
| Time base Accuracy | 20 ppm on all models |
| Display (VGA) | Color active matrix LCD on all models |
TDS3064B
Tektronix Digital Phosphor Oscilloscope
Application Modules & Options:
- TDS3FFT FFT application package - The FFT application package adds FFT analysis and measurement capability to your TDS3064B oscilloscope. Application packages can be installed by the user. Further information can be found in the service manual TDS3000B TDS3064B programmer manual.
- TDS3TRG Advanced Triggering application package - The advanced triggering application package adds pulse-width, slew-rate, pattern, state, runt, and edge-delay triggering capability to your TDS3064B oscilloscope. Application packages can be installed by the user. Reference the user manual for the TDS3064B.
- TDS3GM GPIB/RS-232 communication module - This communication module adds GPIB and RS-232 ports to your TDS3064B oscilloscope. You can attach a printer to these ports or use them for remote programmability. Communication modules can be installed by the user and include the TDS3000-Series oscilloscope Programmer Manual for the TDS3064B for further reference.
- TDS3AAM Advanced Analysis Module - Adds extended math capability, arbitrary math expressions, measurement statistics and additional automated measurements. TDS3064B Tektronix oscilloscope modules.
- TDS3LIM Limit Testing Module - Offers fast, accurate Go/No Go verification that tested circuits are operating within intended parameters. For use with the TDS3064B.
- TDS3TMT Telecommunications Mask Testing Module - Pass/Fail compliance of ITU-T G.703 and ANSI T1.102 standards, custom mask testing and more. This module is compatible with TDS3064B Tektronix scope.
- TDS3VID Extended Video Editing Module - Adds Video QuickMenu, autoset, holdoff, line count trigger, video picture mode, vectorscope mode*1, HDTV format triggering graticules and more. Refer to the TDS3064B user manual for more information on options and modules.
- TDS3SDI 601 Serial/Digital Video Module - Identify and analyze ITU-R BT.601 video signals, video picture mode with bright line select, vectorscope mode*1, HDTV format triggering and more. TDS3064B Tektronix Oscilloscope.
- TDS3VM VGA/RS-232 communication module - This communication module adds VGA and RS-232 ports to your TDS3064B oscilloscope. You can attach a printer to the RS-232 port or use it for remote programmability. You can attach a monitor to the VGA port to enhance viewing the screen from a distance. Communication modules can be installed by the user and include the TDS3064B TDS3000-Series oscilloscope Programmer Manual.
- TDS3EM Ethernet communication module - This communication module adds Ethernet 10baseT and RS-232 ports to your TDS3064B oscilloscope. You can attach the oscilloscope to an Ethernet network for remote printing. Communication modules can be installed by the user and include the TDS3000-Series Programmer Manual TDS3064B.
- TDS3CHG external battery charger - The battery charger recharges the oscilloscope battery pack in approximately 3 hours. For use in the TDS3064B digital phosphor oscilloscope.
- TDS3BAT rechargeable battery pack - An extra rechargeable battery pack provides a high-capacity spare battery for extended portable operation.For use in the TDS3064B digital phosphor oscilloscope.
How-to Troubleshoot the TDS3064B Tektronix TDS3000B Oscilloscope
General Troubleshooting Tips
- Verify that your factory defaults were in fact recalled before configuring your scope or taking any measurements.
- Double check the circuit configuration. An incorrect connection or missing wire could alter your results.
Function Check procedure for Tektronix Oscilloscope
- Connect your oscilloscope power cable
- Power on your oscilloscope. Confirm that self tests have passed.
- Connect your oscilloscope probe to channel 1. Connect the probe tip & reference lead to PROBE COMP connectors.
- Press the AUTOSET button. You should see a square wave in the display (approx. 5V at 1kHz).
Troubleshoot: RS-232 Communications Port
- Verify the correct cable and adapters are in use
- Verify that cables are connected to the correct ports
- Reset the RS-232 parameters to Defaults, then set the Baud Rate to match the computer or hard copy device.
- Enable the debug window to view the RS-232 status, data transmitted, data transceived, and errors.
Troubleshoot: No signals onscreen (after scaling & offsetting)
- Double check for loose wiring or connections from the probe alligator clips / grabber clips.
- Verify your black leads from the probes are grounded.
- If earth ground is present, verify black leads of the probes and earth ground are at the same potential.
Troubleshoot: Unexpected signal onscreen
- Double check the timescale, a small piece of a larger waveform might be displayed.
- Double check that probe clips are connected to the correct circuit node.
If your problem persists
- Recall factory defaults once more and try again
- Contact Tech Support for further assistance
