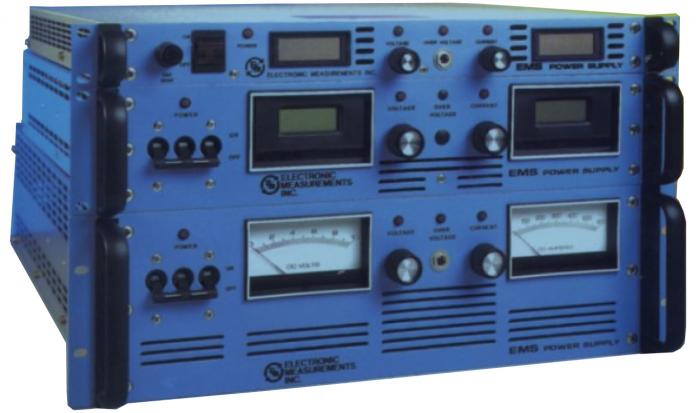

TDK Lambda EMS 10-200-5-D-RSTL Power Supply

The EMS 10-200-5-D-RSTL Power Supply offers a single 0-10 volts at 0 - 200 amps output with a precision "ten turn" control knob for voltage adjustment and a control knob for current adjustment. In addition, this power supply incorporates an adjustable over-voltage "crowbar" security option. The digital meters provide exact readings of voltage and current. The output connections are back board high current "buss bars", with extra connections provided for remote voltage sense and programming.

This model is an authentic lab grade, dc power supply with hum and noise specifications estimated in millivolts and supply regulation accurate to +/- 1%. This Lambda EMS Model is a precision regulated instrument that can be utilized for applications in plating and electronic circuit design or repair.

This EMS arrangement incorporates a high power switch mode from AC to DC for applications where the high efficiency, exact regulation, a high degree of packing density, and light weight are needed. This model also offers a maximum voltage of 6000 V, a maximum current of 30000 A, a Ripple and Noise of 75 mVp-p, and GPIB and RS-232 interfaces.

The EMS 10-200-5-D-RSTL was created to work as a source of constant current/constant voltage with an automatic crossover. Every EMS Power Supply is fully programmable through an analog programming or an optional RSTL advanced interface, permitting framework integration.

The user manual for this model is available on the ApexWaves.com website if you would like more information on its specifications and features.
