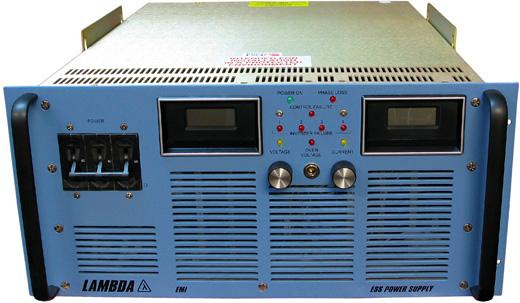

TDK Lambda 130-115-11-D DC Power Supply

The 130-115-11-D is a constant, voltage, constant current programmable DC Power Supply manufactured by TDK Lambda. This model has the capability of being remotely started or halted by an external AC or DC voltage source. The 130-115-11-D will respond to the setting of the front panel controls or an external control signal. The control signal can be a voltage, resistance, or current. This model is ideal for tough high current applications, including DC Motors, Magnetic Coils, and RF Amplifiers because of its pulse-by-pulse current limit. It can also be used in laboratory and OEM applications.

The TDK Lambda 130-115-11-D DC Power Supply has RS-232 and IEEE options, along with voltage current programming options. This model has parallel and series operations capabilities. The 130-115-11-D DC Power Supply has digital panel meters and an AC input volt of 480 Vac, 50/60 Hz. On the front panel of this DC Power Supply, potentiometers are included for current and voltage control. LED indicators display conditions, such as: Control Failure, Overvoltage Condition, Phase Loss, and Inverter Failure.

The overvoltage safety feature is a useful function on this model. The circuit will soft discharge the power supply output to safeguard the load if the output voltage meets the OVP set number. The alteration is from 0% to 105% of Full Vout.
