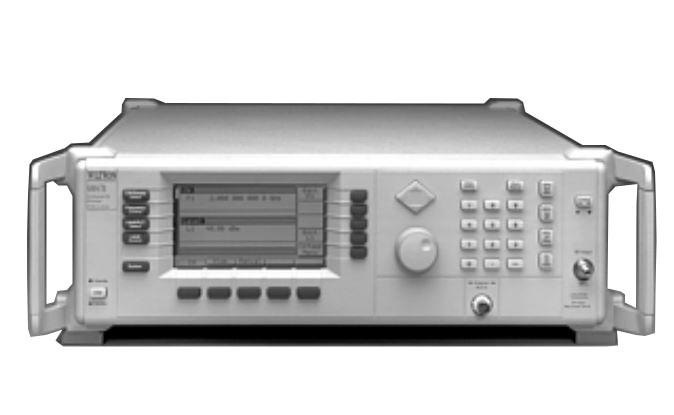

Anritsu 68045B Signal Generator

The 68045B is the synthesized CW Signal Generator by Anritsu. The signal generator is microprocessor based and offers high resolution for phase-lock capability. The user can control the 68045B locally. The control options are integrated on the front panel of the signal generator. The interface is extremely simple to understand and use. The user can navigate through different options quickly. The user also has the facility to control the 68045B remotely. It comes with the General Purpose Interface Bus to accommodate this functionality. The IEEE-488 plays the role for communication over GPIB port.

The 68045B Signal Generator comes with the frequency range of 0.5 to 20 GHz. It offers the maximum power of 13 dBm at the output. The device offers many control options on the front panel. The front panel of the 68045B is divided into two different areas. One section has the options and keys for data entry. It also incorporates keys to navigate through the menu. The user can select an operation mode and other configuration parameters from here. The other section incorporates the display screen. The user can view the measurement data via this display. The front panel also incorporates the interfaces for the input and output connectors.

The Anritsu 68045B comes with the capability to generate broad and narrowband sweeps. It does so for the whole frequency range of the device. It offers two modes for the frequency sweep. The one is step sweep and the other is the manual sweep. The 68045B offers amazing performance in tough engineering environments. The smart features enable the user to use it in various design environments.
