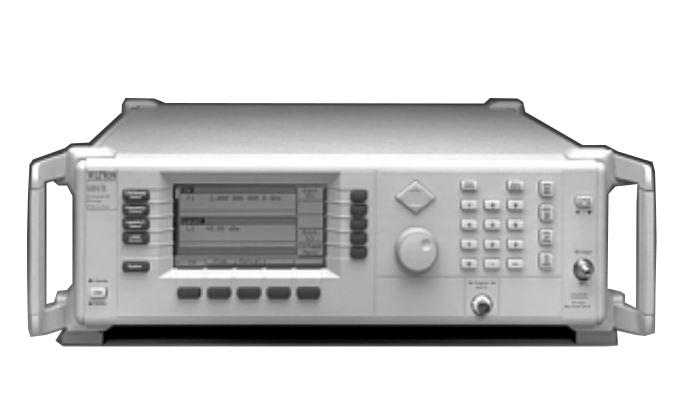

Anritsu 68055B Signal Generator

The Anritsu 68055B Signal Generator comes with the frequency measurement range of 0.5 to 26.5 GHz. It provides three different power levels at the output in this frequency range. The value for power levels is 13, 9 and 6 dBm. It is a microwave synthesizer for many applications. The model offers numerous smart features to the users, including phase, frequency, amplitude and pulse modulation.  The 68055B Signal Generator comes with low noise for SSB phase. The user can upgrade the Signal Generator with ease, which helps the user incorporate the advanced functions at an extremely low cost.

The 68055B Signal Generator is designed to have sufficient ventilation. It helps the instrument avoid overheating and sudden shutdown and improves the performance efficiency and life cycle of the equipment. The device also offers amazing accuracy in CW mode. The resolution in this mode is of the order of one kilohertz. The switching time of 68055B in CW mode is less than 40 milliseconds. The instrument enables the user to program the frequency at a very quick speed. The GPIB control mechanism helps to achieve this functionality. The user can store up to 1000 non-sequential frequencies. These are used as step sweep for phase-lock. The data is stored in a volatile memory.

The Anritsu 68055B offers the exceptional resolution of power at the output. It is of the order of 0.01 decibel. The Signal Generator also comes with many setups. These setups are saved in non-volatile memory. These setups are to control the front panel menu and system menu. The user can get more details from the 68055B user and maintenance manual on the apexwaves.com website.
