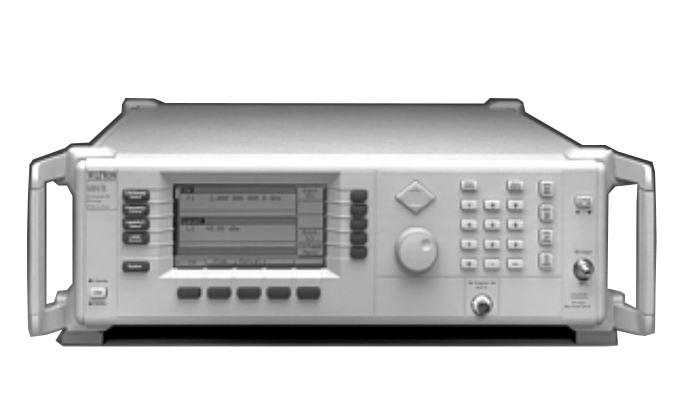

Anritsu 68065B Signal Generator

The 68065B is an advanced Signal Generator created by Anritsu, which incorporates comprehensive features and capabilities. It has integrated options to fulfill engineering design requirements of the modern age. The 68065B is capable of generating frequency between 0.5 GHz to 40 GHz. It enables the user to simulate signals of various types. These simulated signals help to perform tests in many different environments. It also has implications in component analysis and A.T.E. applications. The instrument comes with the low phase noise SSB. The user can also download the complex modulation schemes for different R&D requirements.

The 68065B Signal Generator offers capabilities for the synthesized modulations. These modulations are comprehensive in nature. The instrument also comes with the sweep capabilities. The user can implement these capabilities for any signal requirement. The 68065B incorporates such amazing options in one package. At the same time, it maintains high performance standards. These performance parameters meet the industry expectations. The product also offers the step, power, and alternate sweep to the users. The sweep width is selected independently in step sweep mode. It is phase locked. It has the accuracy according to the internal or external time base. The dwell time per step is variable. It is of the order of 1 ms to 99 seconds. The switching time of 68065B is less than fifteen milliseconds.

The 68065B signal generator also offers extraordinary agility in programming. The user program and control the instrument over GPIB interface. It can also generate RF signals with complex modulation formats. It includes QPSK and QAM. The instrument also implements the IEEE-488 function subset. It helps 68065B for interfacing different internal and external devices. It allows the remote operation of the 68065B signal generator.
