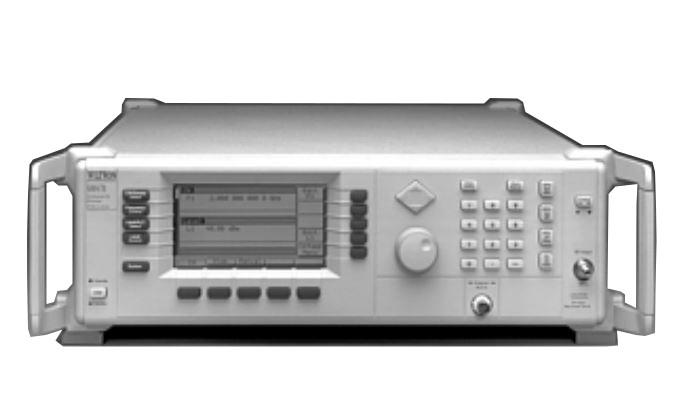

Anritsu Synthesized Signal Generator 68069B

The Anritsu 68069B is a synthesized Signal Generator. The 68069B provides the frequency range of 0.01 GHz to 40.0 GHz and an output power range between +3.0 dBm to +13.0 dBm. It also provides the synthesized mechanism. It is implemented for the simulation of signals and analysis function. It also synthesizes signal sources with high-resolution phase-lock capability.

The 68069B device comes with the capability to operate in alternate sweep mode. This mode enables alternate sweeps in step between any two sweep ranges. This sweep range is in association with a power level.

The Anritsu 68069B provides many control options and features. It enables fault detection capability by self-test mode feature.  It also has frequency synthesis. It is used for phase lock control of output frequency. It provides four phase lock loops. These are reference loop, the coarse loop, the fine loop and the YIG Loop. It helps to produce accurate and low noise RF output signal. It also has intensity marker. This marker produces an intensified dot on trace. The signal generator comes with the GPIB interface. The Anritsu 68069B also has AUX and serial I/O connector options on the rear panel.

The Anritsu 68069B provides non- volatile RAM option. It enables the user to store the settings and setups of the front panel and provides the master or slave mode of operation. The 68069B signal generator also incorporates amazing display features. It offers various front panel options. These options help to control the display of 68069B signal generator.
