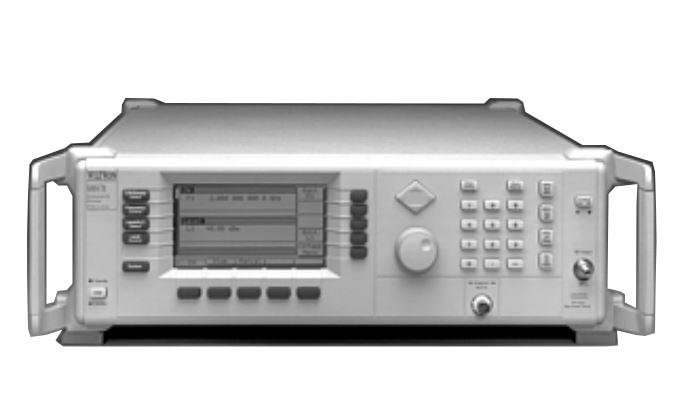

Anritsu Synthesized Signal Generator 68075B

The Anritsu 68075B Signal Generator is an efficient instrument, which offers accurate and enhanced performance synthesized signal generator capabilities. It provides a high frequency range of 50.0 GHz. The low frequency range is of the order of 0.5 GHz. The Anritsu 68075B provides many features and control applications. It is capable of generating discrete frequencies. and offers broad and narrow band step sweeps across the frequency range.

 The Anritsu 68075B enables the user to generate frequency in manual sweep mode. This mode provides manual tuning of output frequency in phase locked steps. This is set by the use of a rotary data knob. The user can view the current output frequency on the data display area. It also helps to select the step size or the number of steps between frequencies. This mode provides stepped and phase-locked setting of frequency between sweep limits.

The Anritsu 68075B is comprised of different subsystems. The power supply subsystem supplies all the regulated DC voltages. It consists of rear panel PCB and rear casting assembly. It also provides the interconnections for signals and data flow between the components. The front panel of Anritsu 68075B provides many amazing functions. It consists of A1 front panel PCB, A2 front panel control PCB, and liquid crystal display (LCD). The user can determine the power range at output according to the selected frequency. It can store up to 1000 non sequential frequencies and address. The user can get the detailed description about the features from the user guide of 68075B on the apexwaves.com website.
