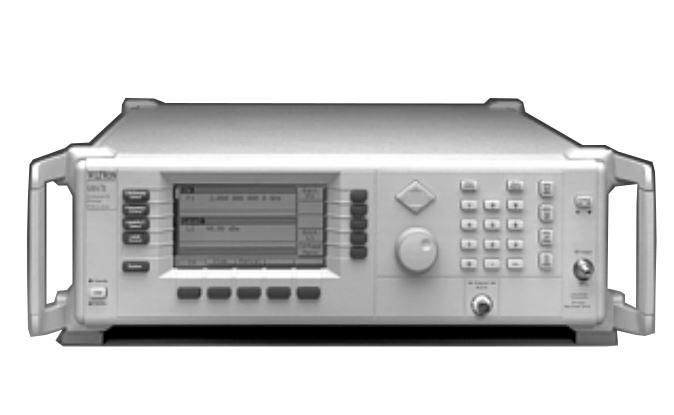

Anritsu Synthesized Signal Generator 68097B

The 68097B is a signal source that offers outstanding capabilities to the users. It provides a lot of control options and mechanisms. The Anritsu 68097B has a high frequency range of 65 GHz and a low frequency range of 0.01 GHz. It implements the mechanism to generate cost effective signals for R&D requirements. This Anritsu Signal Generator provides the right synthesizers and signal simulation for components analysis.

The Anritsu 68097B Signal Generator offers exceptional features and applications. The device provides phase locked step sweep modes. This step sweep mode provides an independent step sweep selection of 1 KHz to full range. The number of steps varies from 1 to 10000. The switching time for step sweep mode is < 15 ms + 1 ms /GHz or < 40 ms. It enables the phase locked setting of frequency between speed limits.  The dwell time per step varies from 1 ms to 99 seconds.

The Anritsu 68097B provides high power output and high stability time base. It also comes with the easy to upgrade features. This helps to accommodate higher frequency and enhanced product performance. The Anritsu 68097B Signal Generator also offers different markers. It has video and intensity markers. The video markers give + 5V 0r -5V selectable marker output. It has AUX I/O connector and rear panel. It also offers the operation in secure mode. The 68097B output power varies with the frequency range. It provides the variable power range between –2.0 dBm to +12.0 dBm.
