National Instruments NI-9923 Terminal Block

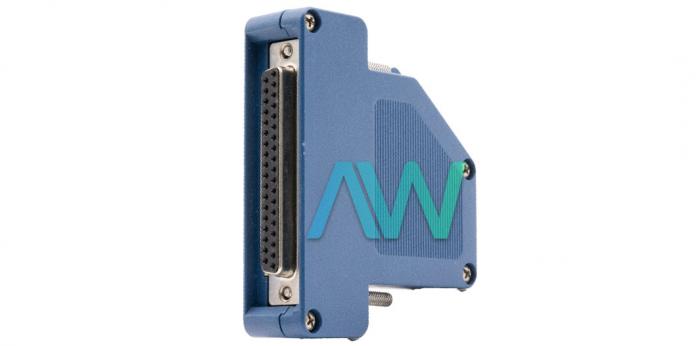

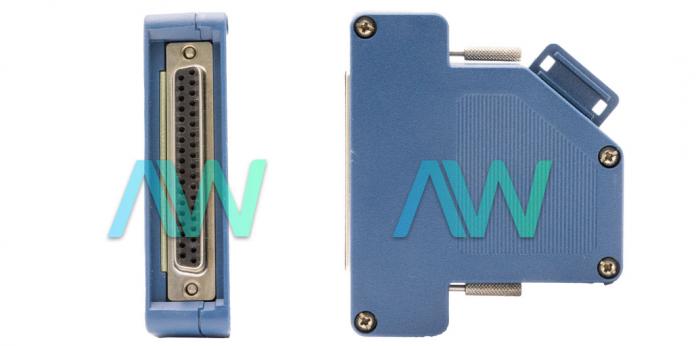

The NI-9923 (Part Number: 781503-01) is a 37-Pin Terminal Block. This Terminal Block is designed with a 37-Pin, Female Screw Terminal Front End Connection and a 37-Pin, Female D-SUB Back End Connection. The NI 9923 can be utilized in the construction of customized cables for modules from the C Series with 37-Pin D-SUB connectors. This Terminal Block is fully compatible with the devices from National Instruments Compact FieldPoint family. You can deploy this device in systems where the maximum operating voltage remains under 60 VDC/30 Vrms.

The NI-9923 facilitates optimum cable positioning since it comes equipped with integrated holes for strain relief. The female D-SUB connector of this Terminal Block can be mated with a male D-SUB connector. A set of jackscrews is also provided to ensure firm connectivity if it is intended to be used as part of a high vibration system. The screw-terminals of the NI-9923 can easily be accessed after the removal of the four captive screws. The NI device weighs 1 lb.
