National Instruments TB-9212 Temperature Input Module Terminal Block

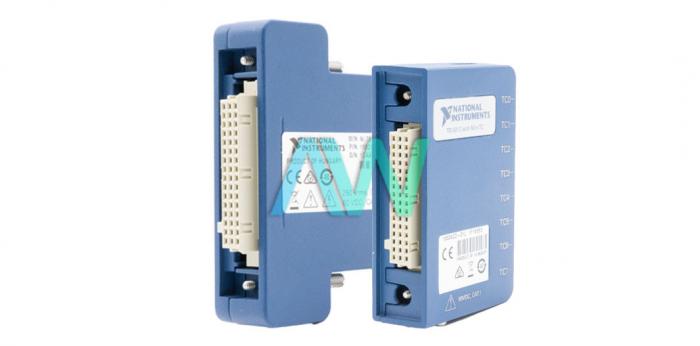

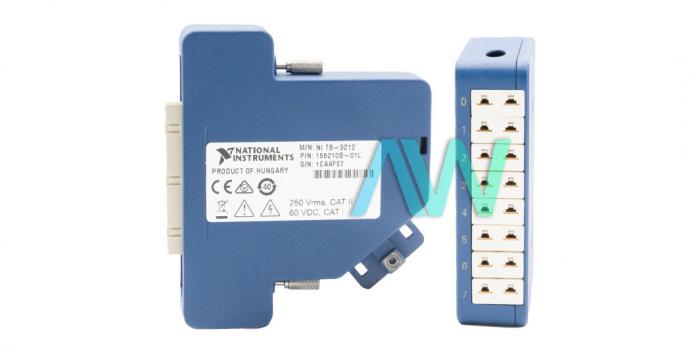

The TB-9212 from National Instruments is a temperature input module terminal block made for use with the NI-9212 Temperature Input Module. The TB-9212 comes in two variations: one with a screw terminal connector (part number 783643-01), and one with a mini thermocouple (TC) connector (part number 784486-01). The TB-9212 has either a 16-Pin Female mini-TC, or a 48-Pin Female DIN and features 60 VDC. This terminal block is an indispensable tool for connecting signals to the NI-9212.

Maintaining a stable ambient temperature is crucial for optimal performance of the TB-9212. To achieve this, ensure that the NI 9212 terminals face forward or upward, as this facilitates effective heat dissipation and mitigates thermal disturbances. Additionally, it is advisable to maintain a stable and consistent orientation for the NI 9212 module, further minimizing the impact of thermal gradients.

To ensure accurate measurements, any devices that are connected to the NI-9212 must adhere to the specifications of the module. By consulting the thermocouple documentation or wire spool, you can make sure that you correctly identify the positive and negative leads of the thermocouple wire to achieve secure and reliable connections. Thermal interference can be minimized by using small-gauge thermocouple options, which transfer less heat to or from the terminal junction. Running thermocouple wiring together near the TB-9212 ensures that the wires remain at the same temperature.

The TB-9212 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the TB-9212 calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the TB-9212 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped. Call or email us today for more information about calibrating the TB-9212!
